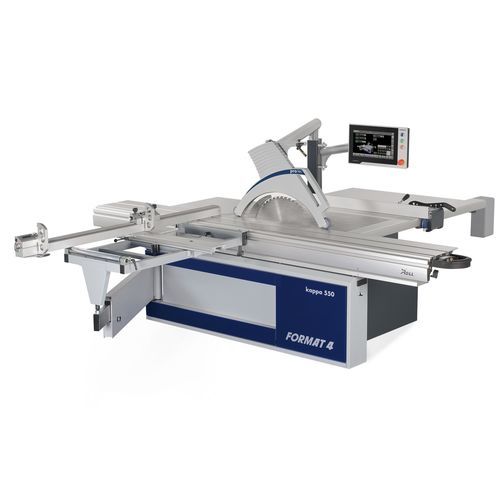

Panel saw kappa 550 e-motion

sliding tablefor non-ferrous metalsfor plastics

Overview
The kappa 550 e-motion is a sliding table panel saw engineered for industrial production. It combines precision cutting, automated workflows and an advanced safety system to optimise throughput and reduce setup time.

e-motion features
The e-motion configuration includes an automatic rip fence, unlimited tool storage and programmable cutting sequences managed via the integrated software. All axes are controlled ergonomically through the central 15" touch screen control (smartouch) for fast, repeatable setups.

Safety
The kappa 550 is equipped with the PCS® (Preventive Contact System), a non-contact, fast-triggering safety device that detects collision risks before contact with the blade and stops hazardous situations in milliseconds. PCS® is dust-resistant and resettable at the push of a button; legally required guards (splitter and saw guard) must still be used.

Highlights

• “X-Roll” sliding table with 10-year warranty (precision roller bearing guidance)
• Designed for continuous industrial operation with stable performance
• Customer-specific production solutions and multiple specification packages
• Solid construction with premium components and engineering accuracy
• Ergonomic operation and integrated control concept

Main features & functions

• Automatic rip fence (e-motion)
• Unlimited tool storage and programmable cutting sequences
• 15" central touch screen control (smartouch)
• PCS® safety system: non-contact, fast triggering, resettable, resistant to dust and dirt; does not replace mandatory protective devices
• “Easy-Glide” tilt segment guiding system (maintenance-free swivel segments)
• High-performance scoring unit options (Classic or Automatic) with 5" scoring blade at 10,300 rpm (60Hz)
• Easy blade change options: “Easy-lock” or optional “Quick-lock” (one tool)
• Signal lamp integrated in overhead saw guard indicating PCS® status

Variants (selected)

• kappa 550 e-motion — Control: e-motion — ∞ program spaces + ARDIS cutting optimisation
• kappa 550 x-motion — Control: x-motion — 9x99 program spaces + cutting sequences — PCS® optionally available
• kappa 550 — Control: "Digi-Drive"

Technical specifications

• Cutting length: 86½"–145¾" (2,200–3,700 mm)
• Cutting width: 39¼"–63" (1,000–1,600 mm)
• Cutting height: 8" (202 mm) at 90°; 5" (141 mm) at 45°
• Tilting of saw blade: 0°–46°
• Saw unit: updated heavy cast-iron assembly; 3-axis scoring unit; scoring park position; tool-free blade change option; spraying equipment available for non-ferrous metals and plastics; Easy-Glide tilt segment guiding
• Oversized saw arbor with double bearing trunnions and Poly-V-belt drive for vibration-free machining
• “X-Roll” sliding table bearing design distributes load across full bearing width to avoid groove wear
• Easy-Glide sliding shoe guides made of dust-resistant, wear-free high-performance synthetic material (6-year warranty)
• 3-axis simultaneous positioning for very high positioning speed (up to 50% time savings vs other premium manufacturers)
• Scoring blade options: 5" diameter scoring blade, 10,300 rpm (60Hz)
