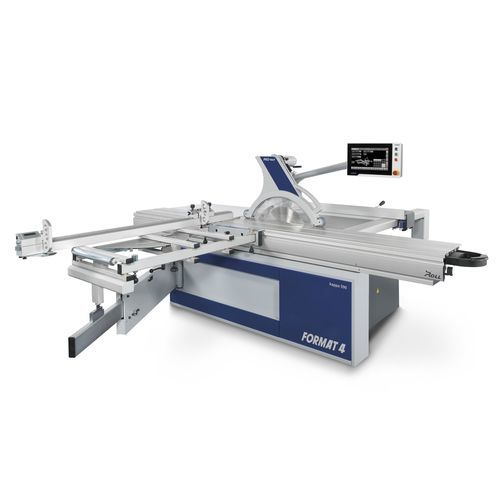

Circular saw kappa 590 e-motion

panelsliding tablehorizontal

Overview
The ingenious panel saw with double pivoting for angle cuts in all positions. With innovative details, the kappa 590 sets a new benchmark for premium sliding table panel saws. The machine features a new twin-pivot unit with a total swivel range of 92° and a maximum cutting height of 202 mm (with a 550 mm saw blade). The kappa 590 is equipped with a highly efficient synchronous motor with continuously adjustable speed control and Poly-V-belt power transmission. All machine axes are controlled ergonomically via a central 15" touch screen with in-house graphical user interface, many preset programs, USB interface and prepared network connection.

Key features

• Saw blade tilt +/-46° (double pivoting circular saw unit)
• Twin-pivot unit with total swivel range of 92°
• Cutting height up to 202 mm (with Ø 550 mm blade)
• Highly efficient synchronous motor with continuously adjustable speed (2,000–5,000 rpm)
• Central 15" touch screen operating unit with graphical UI
• Prepared for automatic cutting optimisation and network connection
• 3-axis scoring unit control with park position (optional)
• Positioning control of rip fence and unlimited tool storage positions
• Complete cutting sequences programmable and importable
• Additional cutting functions and preset programs (rabbets, grooves, notches, angle cuts, oblique cuts plus, false mitres, compound cut plus, concealed V-neck, hip and valley rafters and various geometric shapes)

Highlights / Premium solutions

• “X-Roll” sliding table with 10 year guarantee for precise, smooth, lifetime play-free guiding
• Big cutting heights as new standard in the premium class (202.0 / 140.8 / 118.7 mm for 90° / +45° / -45°)
• Format4 TOP circular saw unit: double-mounted shaft in solid cast iron housing for vibration-free high performance
• Tool-free saw blade change option (“Easy-Lock”) and alternative single-tool Quick-lock system
• Scoring unit park position for use of large diameter main blades and resin protection of the scoring blade
• Optional spraying equipment for processing non-ferrous metals and plastics (lubricant/oil spray to the blade)
• Optional red LED scoring unit operation display for visible safety status
• Overhead saw guard with optimized dust extraction and adjustable linear guide design
• Optional front tool compartment with LED for blade and splitter storage

Variants / Controls
The kappa 590 is available in different control variants (examples shown on the page: e-motion and x-motion) and multiple configuration packages and outrigger versions to suit specific production needs. The e-motion variant is shown with control “e-motion”; the x-motion variant is offered with alternative control functionality and some differing optional cutting height configurations.

Software & Productivity
The in-house software provides a graphical user interface with numerous predefined cutting programs and the ability to import and export cutting sequences via USB. Many preset programs (for example: pyramid, various geometric shapes and complex compound cuts) support fast, repeatable production workflows and cutting optimisation.

Caractéristiques / spécifications techniques

• Model family: kappa 590
• Saw blade tilt: +/-46° (double pivot)
• Twin-pivot total swivel range: 92°
• Maximum cutting height (with Ø 550 mm blade): 202 mm (90°); 140.8 mm (+45°); 118.7 mm (-45°)
• Motor: highly efficient synchronous motor with continuously adjustable speed (approx. 2,000–5,000 rpm)
• Drive: modern Poly-V-belt power transmission
• Control: central 15" touch screen (graphical UI), variants include e-motion and x-motion
• Scoring unit: 3-axis scoring unit “Control”, automatic adaptation to tool data, park position option
• Sliding table: “X-Roll” roller bearing system (10 year guarantee)
• Rip capacity: (typical ranges shown) approx. 39 3/8" – 62 63/64" (model/variant dependent)
• Cutting length: approx. 86 5/8" – 145 11/16" (model/variant dependent)
• Tool change: Easy-Lock tool-free saw blade change (option) and Quick-lock alternative
• Extraction: Overhead saw guard with dust extraction from below the table; optimized dust channel design
• Optional features: spraying unit for non-ferrous metals/plastics, LED scoring display, front tool compartment with LED, remote lock release for overhead guard
• Software / connectivity: USB interface, prepared network connection, ARDIS cutting optimisation supported
