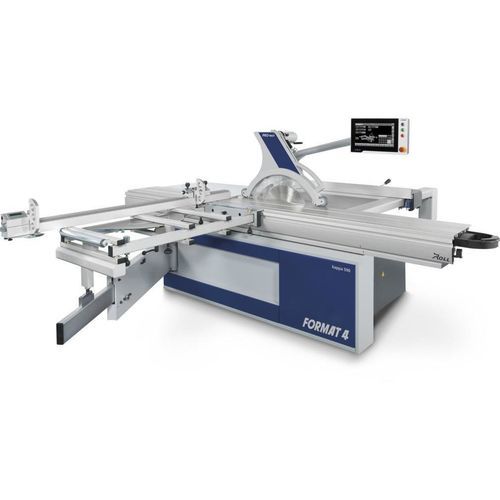

Circular saw kappa 590 x-motion

panelsliding tablefor non-ferrous metals

Overview
The kappa 590 x-motion is a sliding table panel saw designed for industrial panel sizing and precision angle work. Its twin-pivot circular saw unit enables pivoting in both directions for mitre and compound cuts, offering a total swivel range of 92° and a high cutting height to accommodate large-diameter blades. Control is centralised via a 15" touch screen with in-house graphical software and prepared network connectivity for integration into production workflows.

Key features

• Twin-pivot saw blade tilt ±46° (double pivoting unit)
• Cutting height up to 202 mm with a 550 mm saw blade (variant/option dependent)
• Highly efficient synchronous motor with continuously adjustable speed (2,000–5,000 rpm)
• Poly-V-belt power transmission for smooth torque transfer
• Ergonomic central operating unit with 15" touch screen and graphical user interface
• USB interface and prepared network connection; ready for automatic cutting optimisation
• 3-axis scoring unit control with park position (optional)
• Precision rip fence positioning and unlimited programmable tool/storage positions
• Import capability for cutting sequences and programmable production workflows

Highlights & innovations

• 'X-Roll' sliding table design for long-term play-free guiding and optimal load distribution
• Extended factory guarantee available for the sliding table system
• Format4 TOP circular saw unit with double-mounted shaft in cast iron housing for vibration-minimised operation
• Tool-free saw blade change systems available ('Easy-Lock' / 'Quick-lock')
• Scoring unit park position to enable large-diameter blades and protect the scoring blade from resin
• 'Easy-Glide' precision tilt segment (double trunnion system; maintenance-free)
• Options for spraying equipment for non-ferrous metals and plastics processing; front tool compartment with LED lighting (optional)

Technical specifications

• Commercial designation: kappa 590
• Model variants: kappa 590 e-motion, kappa 590 x-motion
• Saw blade tilt: ±46° (double pivoting)
• Twin-pivot total swivel range: 92°
• Maximum cutting height examples: 202.0 mm at 90°; 140.8 mm at +45°; 118.7 mm at -45° (variant and blade diameter dependent)
• Motor: highly efficient synchronous motor with continuously adjustable speed (2,000–5,000 rpm)
• Power transmission: Poly-V-belt technology
• Control: central 15" touch screen with in-house graphical user interface; e-motion and x-motion control variants
• Software: multiple programs, USB interface, prepared for network connection and remote maintenance
• Cutting optimisation: prepared for automatic optimisation (compatible with common optimisation software)
• Scoring unit: 3-axis scoring with automatic adjustment and park position; tool data adapts scoring blade width/height
• Tool change: tool-free blade change systems available ('Easy-Lock' / 'Quick-lock')
• Sliding table: 'X-Roll' design for optimal load distribution and long-term accuracy
• Cutting length examples: approx. 2,200 mm – 3,700 mm (model dependent)
• Rip capacity examples: approx. 1,000 mm – 1,600 mm (model dependent)
• Program spaces: unlimited program storage plus optimisation support
• Additional preset functions: rabbets, grooves, notches, angle and compound cuts, false mitres, concealed V-neck, roof rafter presets, geometric shapes
• Extraction & overhead guard: overhead saw guard with dust extraction and optimised dust channel, adjustable on linear guides
• Accessories / options: spraying unit for non-ferrous metals/plastics, parts list holder, LED-lit tool compartments, remote lock release for overhead guard
