Motor-driven rotary table 1000 series
horizontalNC

motor-driven rotary table
motor-driven rotary table
motor-driven rotary table
motor-driven rotary table
motor-driven rotary table
motor-driven rotary table
motor-driven rotary table
Add to favorites
Compare this product

Characteristics

Operation
motor-driven
Configuration
horizontal
Other characteristics
NC

Description

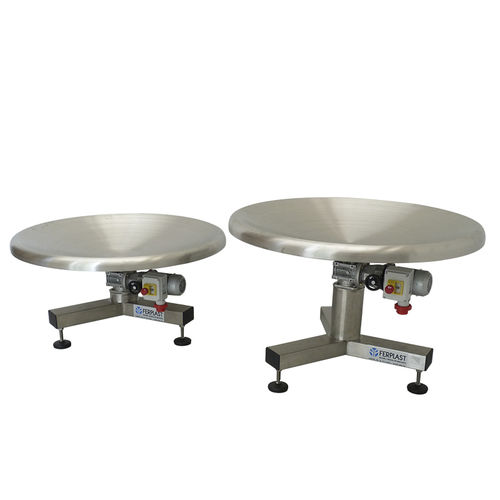

The accumulation turntables are made from the highest quality stainless steel and can be supplied in numerous sizes. They are utilized for the collection of filled bags, bottles and packages and can be added to an existing packaging line. These powered tables unload from the conveyor and aid the picking operation. These accumulation turntables have adjustable heights and changeable speed drives. The Concave Model 1200 is a concave table with a diameter of 1,200 mm. The rotation speed can be changed from 4 to 9 rounds per minute. The stainless steel device has adjustable feet, a three-phase motor, circuit breaker and emergency stop. It operates on a three-phase power supply of 380V at 0.18 Kw. The accumulation turntables have a standard height of 810 mm (+40 mm) and are made in compliance with CE standards.

VIDEO

Catalogs

*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
