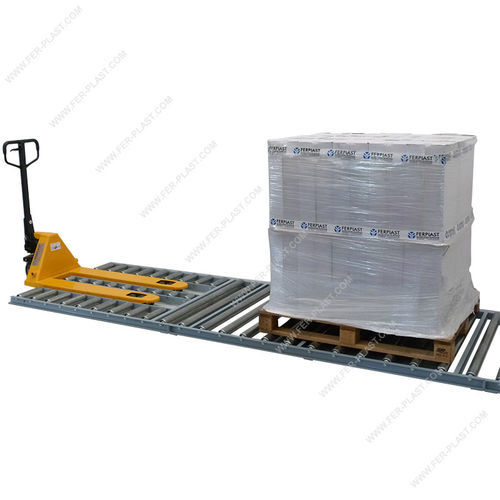

Heavy haul conveyor system P100-150

Free roller conveyors with two or three lanes, diameter 60 mm, pitch 100-150 mm for loading and unloading with pallet truck. We manufacture free roller conveyors with two or three lanes, with a diameter of 60 mm and a pitch of 100-150 mm. This type of roller conveyor is suitable for loading and unloading pallets with a pallet truck. They consist of a robust structure made of coated steel profiles. The rollers are of high quality made of galvanized steel. Depending on the product and the weight, it is possible to vary the number, the diameter and the characteristics of the rollers. Normally the conveyors have a width of 800-1000-1200 mm and length of modules is 1500-2000-3000 mm. It is possible to design and produce rollers based on specific needs. Technical features: - Rollers lane D60 P100-150 - Structure: painted steel - Modules length (mm): 1500-2000-3000 - Usable width (mm): 800-1000-1200 - Rollers: Series MP12 (galvanized) - Rollers diameter (mm): 60 - Pitch (mm): 100-150 - Roller axis diameter (mm): 15 (threaded hole M10) - Height from floor (mm): 180-80 - Payload (Kg/m): 1000-1500 On request, we produce lifting systems capable of bringing the pallet height of the automatic line (normally high about 400-500 mm).
