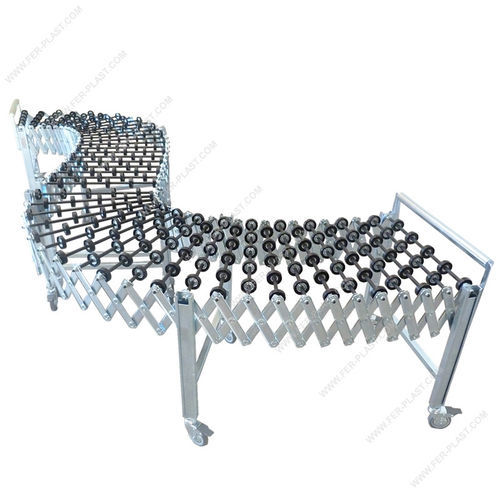

Roller conveyor REGRL series

accumulationtransportgravity

Idle roller conveyors extendable with plastic wheels and galvanized steel pantograph structure for handling boxes, cassettes, and packages with a flat base. They are typically positioned at the outlet of packaging machines and taping machines for the accumulation of packages and allow for different route shapes with curves up to 180° (depending on the length of the roller conveyor). The roller conveyors are equipped with supports with wheels with brakes and are easily extendable and resealable, allowing them to be moved and stretched, taking up very little space when not in use. The movement of the boxes occurs by gravity, and the box stopper terminal (included) prevents falling. The roller conveyors with a width of 800 mm are equipped with a central pantograph to make the structure more robust. Standard supports are adjustable in height from 650 mm to 900 mm, but on request, you can have supports with a height of 450-650 mm (same cost) or 950-1250 mm with an increase. Technical Data: - Series: GRL - plastic wheels - Extendable roller: Plastic rollers with ball bearings - Bearing structure: Galvanized steel - Supports (STD): Adjustable in height from 650 mm to 900 mm - Wheels: Rubber with diameter 80 mm with brake - Roller type: 2 modules (min 1000 mm, max 3000 mm, 3 supports), 3 modules (min 1400 mm, max 4500 mm, 4 supports), 4 modules (min 1800 mm, max 6000 mm, 5 supports), 5 modules (min 2200 mm, max 7500 mm, 6 supports), 6 modules (min 2600 mm, max 9000 mm, 7 supports) - Orderable width (mm): 500, 650, 800 - Useful width (mm): 480, 630, 720 - Overall width (mm): 570, 720, 870 - Wheels diameter (mm): 48 - Axis diameter (mm): 8 - Wheelbase (mm): from 40 to 120 (staggered) - Capacity (Kg/mt): 30 Note: The maximum capacity of the extending roller conveyors is valid up to 2/3 of their maximum extension. Beyond this extension, the capacity decreases by 50%. For correct use, it is necessary to lengthen the modules evenly. Products must be placed on the roller conveyor, distributing the weight along its entire length.
