Edge loading ramp FPL series

vehiclegroundtransport

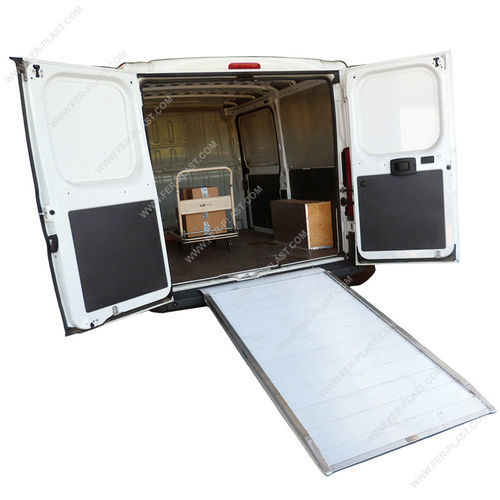

LOADING RAMPS LIGHT SERIES FPLThe FPL series of single loading ramps is designed for the safe loading and unloading of light vehicles, small wheeled vehicles or carts, and is also ideal for small wheelbases. Thanks to their optimised structure, these ramps are the ideal solution for professional and private uses in the logistics, craft or agricultural sectors.This line includes various models with lengths of up to 3,000 mm and a variable load capacity from 500 to 900 kg, to best meet different transport needs.The series is available in two variants:Standard surface, guarantees maximum adhesion and gripSurface with anti-slip coating, perfect for contexts that require greater adhesionAll models in this series are available with a safety side edge, useful for preventing lateral slipping.CHOOSING THE LENGTH:The choice of length is a fundamental aspect to ensure safe use of the ramp, the latter is calculated based on various factors:Loading height: The distance between the ground and the point where the ramp ends (usually the cargo area of ​​a van). The greater this height, the greater the length of the ramp must be to avoid excessively steep inclinations.Ramp inclination: it is advisable to maintain a maximum slope between 20% and 30% depending on the type of load.Product weight: another fundamental aspect is the weight of the vehicle/equipment that must be loaded. The shorter the ramp, the greater its capacity will be, but at the same time the greater the inclination that the latter will assume.Based on this we can indicatively determine that:- In the presence of a height of 30 cm it is recommended to use a ramp with a length of 1500 mm- In the presence of a height of 50 cm it is recommended to use a ramp with a length of 2000 mm- In the presence of a height of 70 cm it is recommended to use a ramp with a length of 2500 mm- In the presence of a height of 85 cm it is recommended to use a ramp with a length of 3000 mmTECHNICAL CHARACTERISTICS FPLMODELStructureCapacity (wheelbase 1000 to 1500 mm)LengthInternal widthExternal widthEdge heightTotal weightFPL65-15Standard500 Kg1500 mm750 mm810 mm15 mm22 KgFPL65-15BStandard500 Kg1500 mm1000 mm1060 mm15 mm25 KgFPL65-20Standard500 Kg2000 mm750 mm810 mm15 mm26 KgFPL65-20BStandard500 Kg2000 mm1000 mm1060 mm15 mm32 KgFPL65-25Standard600 Kg2500 mm750 mm820 mm30 mm35 KgFPL65-25BStandard600 Kg2500 mm1000 mm1070 mm30 mm43 KgFPL65-30Standard900 Kg3000 mm750 mm830 mm35 mm48 KgFPL65-30BStandard900 Kg3000 mm1000 mm1080 mm35 mm54 KgFPL65-15SGWith lining500 Kg1500 mm1000 mm1060 mm15 mm26 KgFPL65-20SGWith lining500 Kg2000 mm1000 mm1060 mm15 mm33 KgFPL65-25SGWith lining600 Kg2500 mm1000 mm1070 mm30 mm44 KgFPL65-30SGWith lining900 Kg3000 mm1000 mm1080 mm35 mm55 KgThe ramps are supplied complete with hole but without anchoring accessories, it will be the customer's responsibility to equip themselves with the appropriate fixing systems based on their operational needs.Wide loading ramps with capacity from 500 to 900 kg and length up to 3000 mmModels and features: FPL65-15, FPL65-15B, FPL65-20, FPL65-20B, FPL65-25, FPL65-25B, FPL65-30, FPL65-30B, FPL65-15SG, FPL65-20SG, FPL65-25SG, FPL65-30SGAvailable with standard surface or anti-slip coatingSafety side edge availableRecommended ramp length based on loading height: 1500 mm for 30 cm, 2000 mm for 50 cm, 2500 mm for 70 cm, 3000 mm for 85 cmSupplied without anchoring accessoriesProfessional and private use: logistics, craft, agricultural sectorsMaximum recommended ramp inclination: 20-30%See technical table for detailed specifications per model
