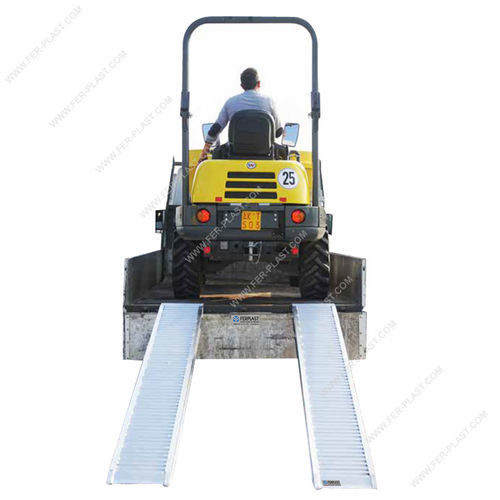

Mobile loading ramp FPH110 series

for truckstrailerflexible

Loading Ramps Series FPH110-125 Our FPH110-125 series loading ramps are designed to ensure maximum strength and safety in even the most demanding loading and unloading operations. Thanks to their reinforced structure, they are the ideal solution for use with small bulldozers, mini-excavators, gardening machines and work equipment. Perfect for the earthmoving, gardening and light construction sectors, these ramps offer a large load capacity, from 2,330 kg up to 4,110 kg, and are available in lengths up to 4,000 mm, making them ideal for loading and unloading from trucks, trailers or trolleys with a high loading platform. The ramps are available both in the version with a safety edge, useful for preventing lateral slipping, and in the version without an edge. The FPH125 models have a maximum standard width of 320 mm, but on request a version with an increased width of 350 mm is also available, both with and without a border, ideal for those who need a larger transit area. All models are supplied with a non-slip stepped surface, designed to ensure maximum grip during use. On request with a 15% increase it is possible to have the ramps with a full non-slip "millerighe" surface. CHOOSING THE LENGTH: The choice of length is a fundamental aspect to ensure safe use of the ramp, the latter is calculated based on various factors: - Loading height: The distance between the ground and the point where the ramp ends (usually the cargo area of a van). The greater this height, the greater the length of the ramp must be to avoid excessively steep inclinations. - Ramp inclination: it is advisable to maintain a maximum slope between 20% and 30% depending on the type of load. - Product weight: another fundamental aspect is the weight of the vehicle/equipment that must be loaded. The shorter the ramp, the greater its capacity will be, but at the same time the greater the inclination that the latter will assume. Based on this we can indicatively determine that: - In the presence of a height of 70 cm it is recommended to use a ramp with a length of 2500 mm - In the presence of a height of 85 cm it is recommended to use a ramp with a length of 3000 mm - In the presence of a height of 100 cm it is recommended to use a ramp with a length of 3200 mm - In the presence of a height of 110 cm it is recommended to use a ramp with a length of 3500 mm - In the presence of a height of 130 cm it is recommended to use a ramp with a length of 4000 mm TECHNICAL CHARACTERISTICS FPH110: MODEL Structure Capacity (wheelbase 1000 mm) Capacity (wheelbase 1250 mm) Capacity (wheelbase 1500 mm) Length Internal width External width Weight per couple FPH110-25S Without edge 3810 Kg 3810 Kg 3810 Kg 2500 mm 305 mm 385 mm 41 Kg FPH110-30S Without edge 3310 Kg 370 Kg 3810 Kg 3000 mm 305 mm 385 mm 50 Kg FPH110-32S Without edge 3050 Kg 3400 Kg 3780 Kg 3200 mm 305 mm 385 mm 52 Kg FPH110-35S Without edge 2700 Kg 3000 Kg 3280 Kg 3500 mm 305 mm 385 mm 56 Kg FPH110-40S Without edge 2330 Kg 2500 Kg 2700 Kg 4000 mm 305 mm 385 mm 63 Kg FPH110-25B With edge 3810 Kg 3810 Kg 3810 Kg 2500 mm 300 mm 370 mm 41 Kg FPH110-30B With edge 3310 Kg 3700 Kg 3810 Kg 3000 mm 300 mm 370 mm 50 Kg FPH110-32B With edge 3050 Kg 3400 Kg 3780 Kg 3200 mm 300 mm 370 mm 52 Kg FPH110-35B With edge 2700 Kg 3000 Kg 3280 Kg 3500 mm 300 mm 370 mm 56 Kg FPH110-40B With edge 2330 Kg 2500 Kg 2700 Kg 4000 mm 300 mm 370 mm 63 Kg TECHNICAL FEATURES FPH125: MODEL Structure Capacity (1000 mm wheelbase) Capacity (1250 mm wheelbase) Capacity (1500 mm wheelbase) Length Internal width External width Weight per couple FPH125-25S Without edge 4110 Kg 4110 Kg 2500 Kg 2500 320 mm 400 mm 50 Kg FPH125-30S Without edge 3900 Kg 3900 Kg 3000 Kg 3000 320 mm 400 mm 61 Kg FPH125-32S Without edge 3600 Kg 3900 Kg 3200 Kg 3200 320 mm 400 mm 65 Kg FPH125-35S Without edge 3200 Kg 3500 Kg 3500 Kg 3500 320 mm 400 mm 69 Kg FPH125-40S Without edge 2600 Kg 2800 Kg 4000 Kg 4000 320 mm 400 mm 80 Kg FPH125-25B With edge 4110 Kg 4110 Kg 2500 Kg 2500 320 mm 385 mm 50 Kg FPH125-30B With edge 3900 Kg 3900 Kg 3000 Kg 3000 320 mm 385 mm 61 Kg FPH125-32B With edge 3600 Kg 3900 Kg 3200 Kg 3200 320 mm 385 mm 65 Kg FPH125-35B With edge 3200 Kg 3500 Kg 3500 Kg 3500 320 mm 385 mm 69 Kg FPH125-40B With edge 2600 Kg 280 Kg 4000 Kg 4000 320 mm 385 mm 80 Kg The ramps are supplied complete with hole but without anchoring accessories, it will be the customer's responsibility to equip themselves with the appropriate fixing systems based on their operational needs. - Large load capacity: from 2,330 kg up to 4,110 kg - Available in lengths up to 4,000 mm - Versions with or without safety edge - Non-slip stepped surface as standard - Optional full non-slip "millerighe" surface (+15%) - FPH125 models: standard width 320 mm, optional 350 mm - Supplied with hole, without anchoring accessories
