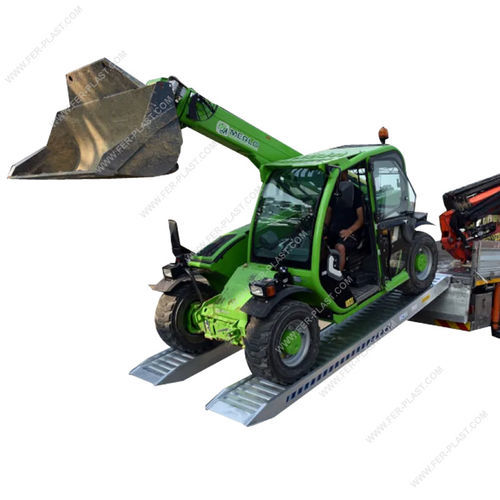

Agricultural machinery loading ramp FPH175 series

for material handling equipmentfor excavatorsfor heavy vehicles

Loading ramps FPH175 series are designed for the safe loading and unloading of excavators, agricultural machinery, and heavy vehicles. This range of ramps is the ideal solution for operators in the earthmoving and logistics sector who require robust, reliable, and versatile equipment. Thanks to a reinforced structure, the FPH175 ramps guarantee maximum stability during loading operations. They are available in different configurations, with capacities from 3,860 kg up to 8,719 kg and lengths up to 5,000 mm, to adapt to every operational need. Ideal for construction sites, agricultural companies, and transporters. The ramps are available both in the version with a 37 mm high safety edge, useful for preventing lateral slipping, and in the version without edge. Both versions have a maximum internal width of 400 mm, but a version with an increased width of 500 mm is also available on request, ideal for those who need a larger transit area. All models are supplied with a non-slip stepped surface, designed to ensure maximum grip during use. Choosing the length is a fundamental aspect to ensure safe use of the ramp, calculated based on various factors: - Loading height: The distance between the ground and the point where the ramp ends (usually the cargo area of a van). The greater this height, the greater the length of the ramp must be to avoid excessively steep inclinations. - Ramp inclination: It is advisable to maintain a maximum slope between 20% and 30% depending on the type of load. - Product weight: Another fundamental aspect is the weight of the vehicle/equipment that must be loaded. The shorter the ramp, the greater its capacity will be, but at the same time the greater the inclination that the latter will assume. Based on this we can indicatively determine that: - In the presence of a height of 95 cm it is recommended to use a ramp with a length of 3500 mm - In the presence of a height of 110 cm it is recommended to use a ramp with a length of 4000 mm - In the presence of a height of 125 cm it is recommended to use a ramp with a length of 4500 mm - In the presence of a height of 145 cm it is recommended to use a ramp with a length of 5000 mm Features FPH175: - Model: FPH175-35S, FPH175-40S, FPH175-45S, FPH175-50S, FPH175-35B, FPH175-40B, FPH175-45B, FPH175-50B - Structure: With or without edge - Capacity (depending on wheelbase): 3,860 kg to 8,719 kg - Length: 3,500 mm to 5,000 mm - Internal width: 400 mm - External width: 480 mm - Weight per pair: 107 kg to 152 kg The ramps are supplied complete with hole but without anchoring accessories; it will be the customer's responsibility to equip themselves with the appropriate fixing systems based on their operational needs.
