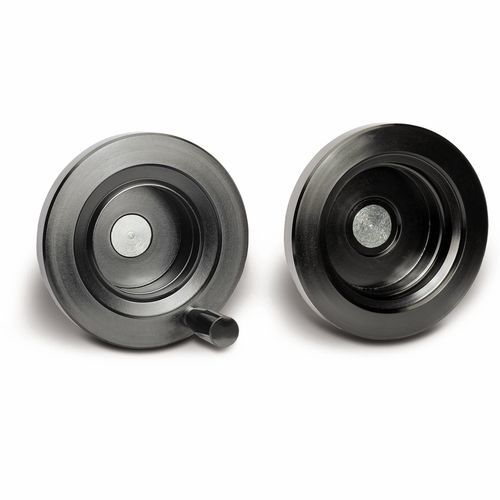

Operating handwheel P series

with handleplastic

The handwheels P140 - P160 - P180 - P170 - P200 are used with analogue and analogue-digital indicators with gravity motion. • The instrument, fitted inside, is blocked by a fixing screw. • Available with or without handles • Reinforced hardplastic, black colour, solvents-, oils-, greases-proof, etc. • Steel or aluminium hub. On request bored holes tolerance H8, key splines, transversal bores, etc. • The lock pin for the fix reaction is in zinc-plated steel ø4 mm or threaded M4 (on request). • Models P140 - P160 - P180, used with indicators I80, IN80 (➜ see sec. "I80-IN80" in the drop-down menu on the left). • Models P170 - P200, used with indicators I100, I100P (➜ see sec. "I100, I100P" in the drop-down menu on the left).
