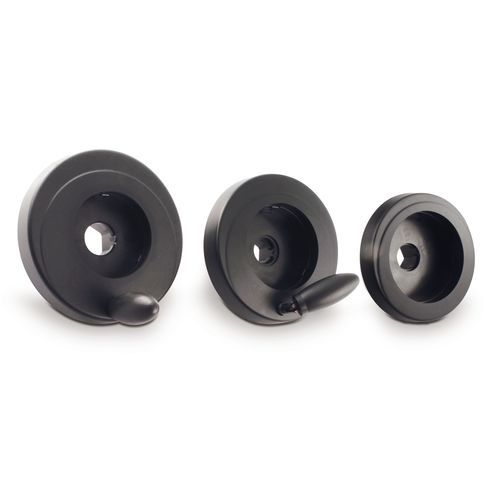

Operating handwheel P-P

with handletechnopolymer

These are motion handwheels used with analogue and analogue-digital indicators, pressed inside to the handwheel seat, and three hooks secure it. • Reinforced technopolymer handwheel, black colour, solvent-, oil-, grease-proof. • Available with or without handles • Hub with aluminium bush with bore ø8 mm. On request bored holes tolerance H8, key splines, transversal bores, etc. • The lock pin is in zinc-plated steel ø4 mm or threaded M4 (on request). • On request a stopper of the instrument opening with indication of the increase direction can be supplied. • Model P-P with gravity movement; used with indicators I60, I90, IN90 (➜ see sec. "I60-I60F" & "I90-IN90-I90F-IN90F" in the drop-down menu on the left). • Model P-PF with fixed reaction; used with indicators I60F, I90F, IN90F (➜ see sec. "I60-I60F" & "I90-IN90-I90F-IN90F" in the drop-down menu on the left). • Model EN90 combinable with P-P / P-PF (➜ see “Programmable position indicators ...” in the drop-down menu on the left).
