Position indicator I80

analogpanel-mountwith handwheel

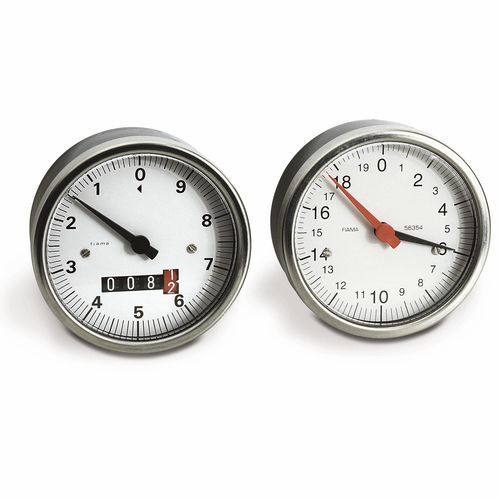

These indicators have to be fitted in motion handwheels, to measure adjustments (angles, shiftings, speed, etc.) on a control dial with graduated circular scale. • Technopolymer or metal case. Transparent and shock-proof polycarbonate cover. Protection IP64. Max. temperature 80°C. • I80 with analogue indication: the dial measure is given by the two pointers: the red pointer carries out a complete turn at every rotation of the drive shaft, and at the same time, the black pointer makes a rotation fraction. The turns that the black pointer needs to carry out to complete a rotation is the ratio of the indicator. • IN80 with analogue-digital indication: the reading is ensured by a 4-digit counter (red digits to indicate decimals) and a graduated control dial. The pointer carries out a complete turn at every rotation of the drive shaft and reads the decimal values. • The gravity reaction indicators I80, and those with counter IN80, are suitable for horizontal or slightly inclined shafts; available with handwheels type P90, P125, P140, P160, P180 (➜ see sec. "P70-P90 / P100P125" & "P-" in the drop-down menu on the left). • On request glycerine filled (vibration-proof). • On request customized dial scales, also for small numbers of pieces.
