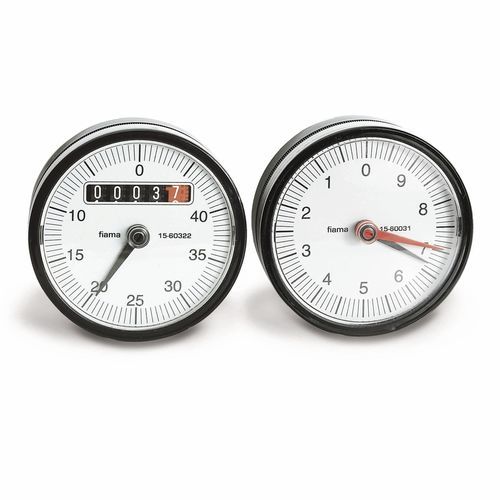

Position indicator I90

analogpanel-mountwith handwheel

These indicators have to be fitted in motion handwheels to measure adjustments (angles, shiftings, speed, etc.) on a control dial, with a regulation screw on the cover front. They are assembled by pressing them directly into the handwheel seat. Technopolymer or metal case. Transparent and shock-proof polycarbonate cover. Protection IP64. Max. temperature: 80°C. • the dial measure is given by the two pointers: the red pointer carries out a complete turn at every rotation of the drive shaft, and at the same time, the black pointer makes a rotation fraction.The turns that the black pointer needs to carry out to complete a rotation is the ratio of the indicator. • with analogue-digital indication. The measures reading is ensured by a 5-digit counter (red digits to indicate decimals) and by a graduated control dial. The pointer carries out a complete turn at every rotation of the drive shaft and reads the decimal values. • The indicators I90 and IN90 are suitable for horizontal or slightly inclined shafts. Available with handwheels P100L, P125P, P150P, P175P, P200P (➜ see sec. "P-P P-F" in the drop-down menu on the left). • The indicators I90F and IN90F are mounted on shafts with any position. Supplied with handwheels P100FL, P125FP, P150FP, P175FP, P200FP (➜ see sec. "P-P P-F" in the drop-down menu on the left).
