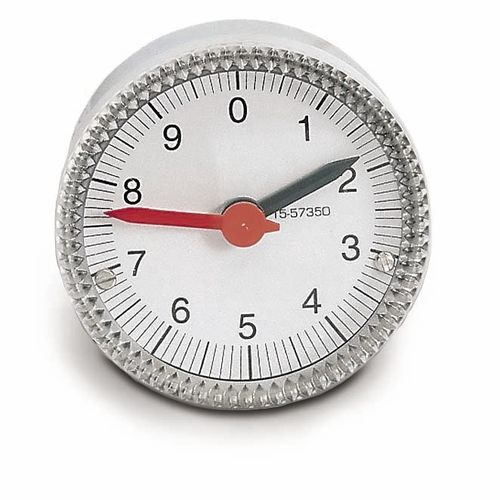

Position indicator I60

analogpanel-mountwith handwheel

These indicators have to be fitted in motion handwheels to measure adjustments (angles, shiftings, speed, etc.) on a control dial with graduated circular scale. The dial measure is given by the two pointers: the red pointer carries out a complete turn at every rotation of the drive shaft, and at the same time, the black pointer makes a rotation fraction.The turns that the black pointer needs to carry out to complete a rotation is the ratio of the indicator. • Technopolymer or metal case, transparent and shock-proof polycarbonate cover. • Protection IP64. Max. temperature 80°C. • I60 (gravity reaction) are suitable for horizontal or slightly inclined shafts. Available with handwheels type P70, P100, P100P (➜ see sec. "P70-P90 / P100P125" & "P-P P-F" in the drop-down menu on the left). • I60F (fixed reaction) are mounted on shafts with any position. Available with handwheel type P100FP (➜ see sec. "P-P P-F" in the drop-down menu on the left). • On request glycerine filled (vibration-proof).
