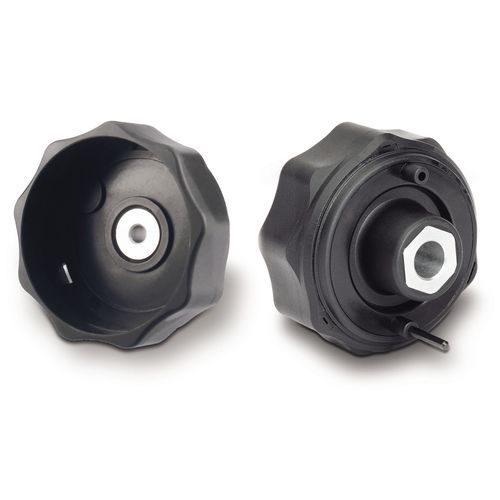

Operating handwheel P100L

with handletechnopolymer

These are motion handwheels used with analogue and analogue-digital indicators to carry out measure adjustments (angles, shiftings). The indicator is pressed inside the handwheel seat, and three hooks (3 x 120°) secure it. • Reinforced technopolymer lobe handwheel, black colour, solvent-, oil-, grease-proof. • Aluminium hub with bore ø8, ø10, ø12 mm (on request). On request bored holes tolerance H8, key splines, transversal bores, etc. • Lock pin in zinc-plated steel for fixed reaction versions ø4 mm or threaded M4 (on request) • Model P100L to be combined with indicators I90, IN90 for horizontal axis (➜ see sec. "I90-IN90-I90F-IN90F" in the drop-down menu on the left). • Model P100FL to be combined with indicators I90F, IN90F for tilted axis (➜ see sec. "I90-IN90-I90F-IN90F" in the drop-down menu on the left). • Model EN90 combinable with P100L/P100FL (➜ see “Programmable position indicators ...” in the drop-down menu on the left).
