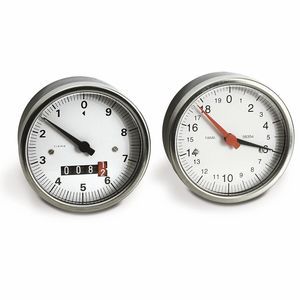

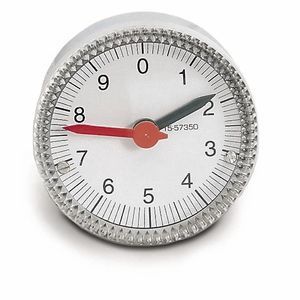

Position indicator I100

analogpanel-mountgravity position

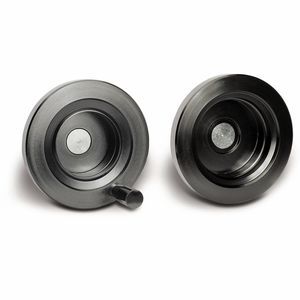

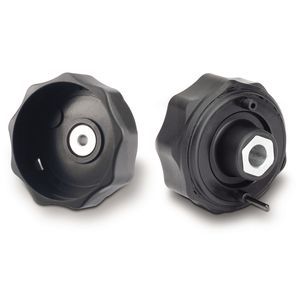

These indicators have to be fitted in motion handwheels to measure adjustments (angles, shiftings, speed, etc.) on a control dial with graduated circular scale. The dial measure is given by one or two pointers: the red pointer carries out a complete turn at every rotation of the drive shaft, and at the same time, the black pointer makes a rotation fraction.The turns that the black pointer needs to carry out to complete a rotation is the ratio of the indicator. • On request type I100P with positioning screw. • Technopolymer or metal case. Transparent and shock-proof polycarbonate cover. Protection IP64. Max. temperature 80°C. • The gravity reaction indicators I100 and I100P are suitable for horizontal or slightly inclined shafts. • Available with handwheels type P170, P200. (➜ see sec. "P-" in the drop-down menu on the left).
