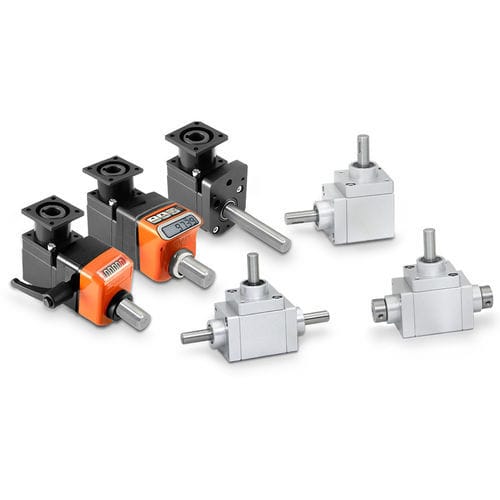

Bevel angle gearbox 66/5

90°aluminum

• Available transmission ratios: 1:1 - 1:2 (standard) - 2:1 (available in versions «A»-«B»-«C»). • Ratios 1/2 and 2/1 are only available with spiral gears. • Aluminium case, anodised; stainless steel shafts (standard). • Radial load 25 kg - axial load 2,5 kg. • Models: - Version «A» with 2 outputs; weight 330 g. - Version «B» with 3 outputs; weight 520 g. - Version «C» (opposite rotation) with 3 ouputs; weight 535 g. - Version «D» with 3 outputs, 2 through hollow shafts; weight 520 g. - Version «E» with 4 outputs; weight 600 g. • Standard output shafts: M = male Ø10 / F = female Ø10. Available on request: - ▪ Output shafts: male Ø14 / female Ø12 - Ø14 in versions «A»-«B»-«C». ▪ Case in stainless steel AISI 303. ▪ Models with spiral bevel gears are available in all versions with transmission ratio 1/1. ▪ Machine-side coupling flange FL-M. ▪ Male shaft flange for position indicators FL-OP/EP.
