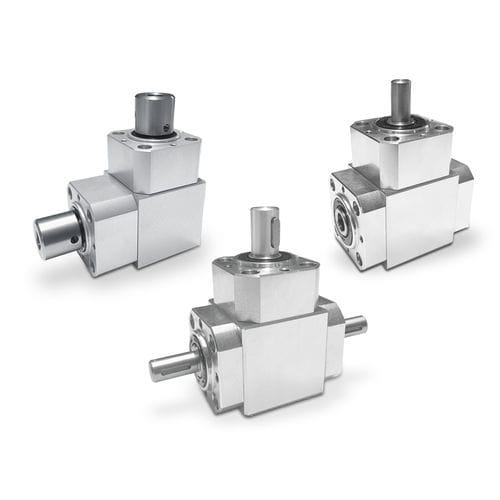

Bevel angle gearbox 66/5UC

90°aluminum

• Ideal for continuous motorized use at maximum efficiency, without any loss of power. • The component configuration ensures handling of constant loads with smooth, and uninterrupted operation. • Oil bath lubrication for speeds above 200 rpm; grease lubrication for speeds below 200 rpm. • Available transmission ratios: 1:1 - 1:2 - 2:1 (available in versions «A»-«B»-«C»). • Aluminium case, anodised; AISI 303 stainless steel shafts. • Max. transmissible torque . • Models: - Version «A» with 2 outputs; weight 600 g. - Version «B» with 3 outputs; weight 620 g. - Version «C» (opposite rotation) with 3 ouputs; weight 630 g. - Version «D» with 3 outputs, 2 through hollow shafts; weight 590 g. • Standard shafts: M = male Ø10CH3 / F = female Ø10CH3. Available on request: - ▪ Shafts: M = male Ø14CH5 in versions. ▪ Shafts: F = female Ø14CH5 in versions. ▪ Custom configurations.
