Spiral bevel angle gearbox 66/4
90°aluminum

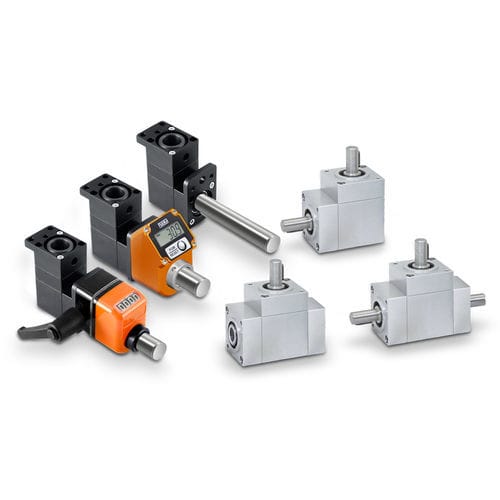

Spiral bevel angle gearbox - 66/4 - FIAMA - 90° / aluminum
Spiral bevel angle gearbox - 66/4 - FIAMA - 90° / aluminum
Spiral bevel angle gearbox - 66/4 - FIAMA - 90° / aluminum - image - 2
Spiral bevel angle gearbox - 66/4 - FIAMA - 90° / aluminum - image - 3
Spiral bevel angle gearbox - 66/4 - FIAMA - 90° / aluminum - image - 4
Spiral bevel angle gearbox - 66/4 - FIAMA - 90° / aluminum - image - 5
Spiral bevel angle gearbox - 66/4 - FIAMA - 90° / aluminum - image - 6
Spiral bevel angle gearbox - 66/4 - FIAMA - 90° / aluminum - image - 7
Spiral bevel angle gearbox - 66/4 - FIAMA - 90° / aluminum - image - 8
Spiral bevel angle gearbox - 66/4 - FIAMA - 90° / aluminum - image - 9
Spiral bevel angle gearbox - 66/4 - FIAMA - 90° / aluminum - image - 10
Spiral bevel angle gearbox - 66/4 - FIAMA - 90° / aluminum - image - 11
Add to favorites
Compare this product

Characteristics

Technology
spiral bevel
Configuration
90°
Material
aluminum
Torque

4 Nm
(2.950249 ft.lb)

Description

• Available transmission ratios: 1:1 - 1:2 (standard) - 2:1 (available in versions «A»-«B»-«C»). • Ratios 1/2 and 2/1 are only available with spiral gears. • Aluminium case, anodised; stainless steel shafts (standard). • Radial load 15 kg - axial load 1,5 kg. • Models: - Version «A» with 2 outputs; weight 145 g. - Version «B» with 3 outputs; weight 160 g. - Version «C» (opposite rotation) with 3 ouputs; weight 170 g. - Version «D» with 3 outputs, 2 through hollow shafts; weight 160 g. - Version «E» with 4 outputs; weight 220 g. • Standard output shafts: M = male Ø8 / F = female Ø8. Available on request: - ▪ Output shafts: male / female Ø10 - Ø12 - Ø14 in versions «A»-«B»-«C». ▪ Case in stainless steel AISI 303. ▪ Models with spiral bevel gears are available in all versions with transmission ratio 1/1. ▪ Machine-side coupling flange FL-M. ▪ Male shaft flange for position indicators FL-OP/EP.
