Spiral bevel angle gearbox 66/22
90°

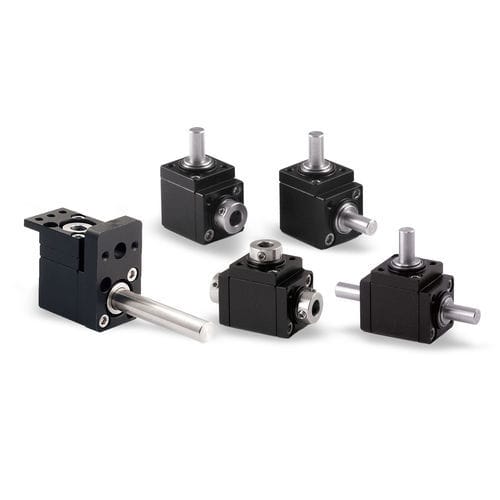

Spiral bevel angle gearbox - 66/22 - FIAMA - 90°
Spiral bevel angle gearbox - 66/22 - FIAMA - 90°
Add to favorites
Compare this product

Characteristics

Technology
spiral bevel
Configuration
90°
Torque

2 Nm
(1.475124 ft.lb)

Description

• Aluminium case, black anodised; stainless steel shafts. • Available with reduction ratio: 1:1. • Radial load 7,5 kg - axial load 0,7 kg. • Models: - Version «A» with 2 outputs; weight 50 g. - Version «B» with 3 outputs; weight 65 g. - Version «C» (opposite rotation) with 3 ouputs; weight 65 g. • Output shafts: = male Ø6 / = female Ø6. Available on request: - ▪ Output shafts: = female Ø8 - Ø10 (only for version «A») ▪Models with spiral bevel gears are available in all versions. ▪ Grease fitting is available in all versions. ▪ Machine-side coupling flange FL-M. ▪ Male shaft flange for position indicators FL-OP/EP.

Catalogs

No catalogs are available for this product.

See all of FIAMA‘s catalogs

Exhibitions

Meet this supplier at the following exhibition(s):

SPS 2026
SPS 2026

24-26 Nov 2026 Nuremberg (Germany) Hall 4A - Stand 225

  • More information

    Other FIAMA products

    Bevel gearboxes and flanged bevel gearboxes for indicators
