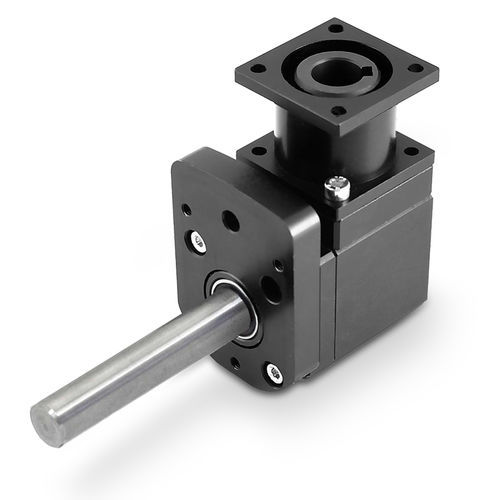

Bevel angle gearbox RINV-OP65

90°aluminum

The RINV-OP65 is a flanged angular gearbox that, combined with a mechanical position indicator type “OP7” or an electronic position indicator type “EP7”, allows to carry out a visualized adjustment, angular or linear, even if the shaft is in an uncomfortable position. • Several orientations and connection possibilities. • Available with ratios: 1:1 - 1:2 reduction - 2:1 moltiplication. • Maximum output torque 12 Nm. • Aluminium case, black anodized. Steel shafts. Steel bevel gears, case-hardened (Pronox). • Movements on ball-bearings, water-proof. • Radial load 25 kg - axial load 2,5 kg • Weight gr. 550.
