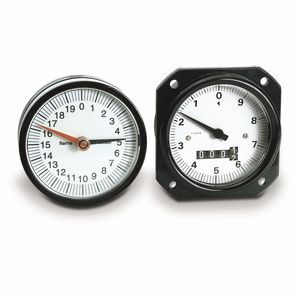

Mechanical tachometer TC80panel-mountanalog
Add to favorites
Compare this product
Characteristics
- Type
- mechanical
- Mounting
- panel-mount
- Display
- analog
- Rotational speed
Max.: 3,000 rpm
(18,849.56 rad.min-1)Min.: 150 rpm
(942.48 rad.min-1)
Description
Suitable for instant measuring rotation or translation speed.
● Accurate reading on linear scale. Dial with double-direction of rotation. Multiple scale dial.
● Ratio between revolutions and dial indication on request.
● Black shock-proof plastic body. Protection IP64. Temperature max. 70°C.
● Compensation depending on temperature.
● Instrument calibration by means of an adjusting screw.
● Drive shaft on self-lubricating bushings.
● Drive shaft output at 90°.
