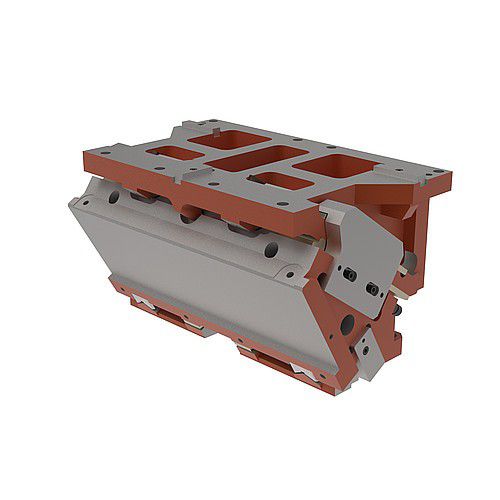

Press tool slide cam unit 2016.25. AERIAL FCC

press tool slide cam unit
press tool slide cam unit
Add to favorites
Compare this product


Characteristics

Applications
for press tool

Description

FIBRO FCC cam units series 2016.25. are a continuation of the FCC Series from a width of 700 mm and higher. This series also impresses with its excellent load bearing as well as the highest precision even after a high number of pressing. All sliding elements of the cam unit correspond to the VDI standard. The sliding elements are shouldered to absorb thrust. The return springs are accessible from the back side of the cam unit, so that they can be dismounted from the die without removing the cam unit. FIBRO FCC cam units series 2016.25. meet the requirements of the BAK product specifications. Various ordering options are available for FIBRO FCC cam units series 2016.25. The working surface can be optionally equipped with or without shoulder Up to an angle of 45°, the cam units are equipped with a pre-acceleration, whereby a choice can be made between roll or plate pre-acceleration. à rouleaux ou à plaque Design features: Double prismatic guide against cam driver, square positioned guiding elements against cam base. Sliding surfaces hardened steel / bronze with solid lubricant Gas springs Positive locking connections FIBRO FCC cam units series 2016.25. are available in the widths from 700 to 1050 mm and in the angular variants 0° to 75 ° (gradation 5°).
