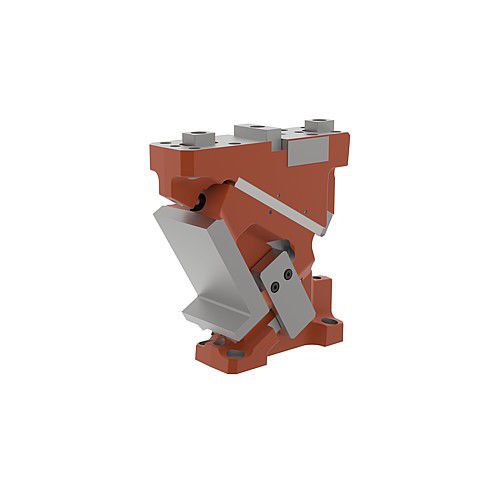

Standard slide cam unit 2016.27.

Our aerial cam units, 2016.27 FCC-OT-LV-C series, are distinguished due to its extrem compact overall dimensions. They are well suited for tools with small and medium-size strokes per lifetime, and also convince with high working and retraction forces. The glide pairing of this cam unit series is performed in sintered/bronze sliding elements against a non-hardened cast surface. The wear elements of the guides are catalog items from our Standard Parts product range and offer excellent availability. The gas springs are accessible from the rear of the cam unit in all cam slide units in this series and can be disassembled within the tool. These gas springs with the advanced safety features used in our cam units, provide the best possible safety standards according to the Pressure Equipment Directive. The cam slide units in this series meet the requirements of the BAK specifications, and are available from stock in the event of a crash. These cam units can be ordered ex works with a machined work surface according to your data set upon request. This machining meets the highest requirements of modern toolmaking processes. Prism guide against driver / box guide against base Cast sliding surfaces (unhardened) / bronze with solid lubricant or sinter Gas spring with safety features The gas spring can be removed within the tool (without disassembling the cam unit). Mechanical retraction Structural damper Cam unit in the tool can be removed towards the rear Extrem compact overall dimensions
