Press tool slide cam unit 2016.24. AERIAL FCC

press tool slide cam unit
press tool slide cam unit
Add to favorites
Compare this product


for press tool

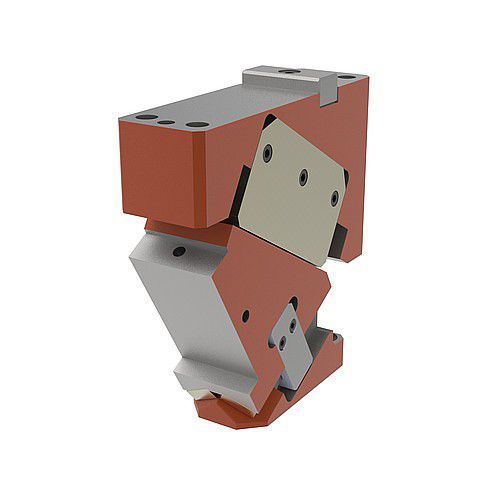

The FIBRO cam unit FCC 2016.24. features compact dimensions, high forces in the working and return strokes as well as excellent precision, even after a high number of cycles. All sliding elements are shouldered. The gas spring can be replaced, without having to remove the cam. Due to its design, the FIBRO cam unit series FCC meets the minimum maintenance requirements. The FIBRO cam unit FCC can be designed ex works with customer-specific tool-specific machining, which meets even the highest requirements of modern diemaking processes. The FIBRO cam units FCC 2016.24. meet the requirements of the BAK product specification as well as the NAAMS. Design features: Double prism guide Sliding surfaces hardened steel / bronze with solid lubricant Gas spring Positive locking connections FIBRO cam units FCC 2016.24. are available in the widths from 60 to 600 mm and in the angular variants 0° to 75° (gradation 5°).
