Slide cam unit 2016.11.

slide cam unit
slide cam unit
Add to favorites
Compare this product


Description

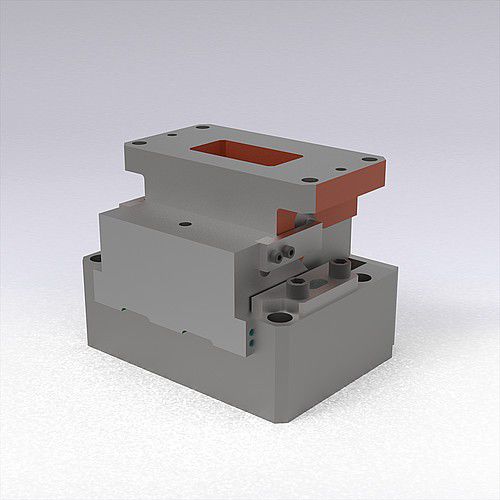

Our FEAC 2016.11 die mounted cam series are designed for simplest applications with low forces and less strokes during lifetime, and also low requiremnets within its guiding. Coil springs are used within this cams for cam return stroke, and additional positive returns are used for safety reasons. These cam units can be ordered ex works with a machined work surface according to your data set upon request. Due to the cam design we recommend not to use these cam series within modern, fast running press lines. flat guide sliding surfaces cast iron coil spring Die mounted cam units in the FEAC 2016.11 series are available in seven widths from 52mm to 300mm with different strokes, in angle 0°.
