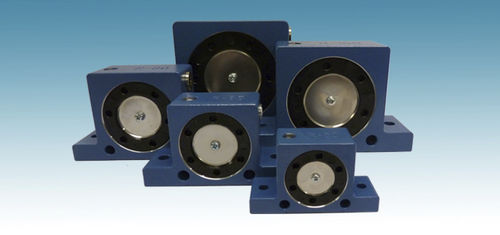

roller vibrator / pneumatic / multi-product / for concrete
R series

{{requestButtons}}

Characteristics

  • Operation:

    pneumatic

  • Product applications:

    multi-product, for concrete, for silos, conveying, for plastics, for pipework

  • Type:

    rotary, roller

  • Other characteristics:

    high-frequency, aluminum

  • Rotational speed:

    Max.: 36,000 rpm (226,194.7 rad.min-1)

    Min.: 10,000 rpm (62,831.9 rad.min-1)

  • Force:

    Max.: 12,500 N

    Min.: 1,070 N

Description

Simply constructed high-frequency roller vibrators, wide range for many applications.

Properties
High torque
Rated frequency 10,000 – 36,000 rpm
Centrifugal force 1,070 – 12,500 N
Continuously variable
Can be used up to 150°C
Resistant to extreme environmental conditions

Field of application
Emptying of hoppers and chutes
Screen filters
Conveying of particulates
Preventing adhesions in pipelines and silos
Transporting of fine powders
Compacting of plastic and concrete in throughs
