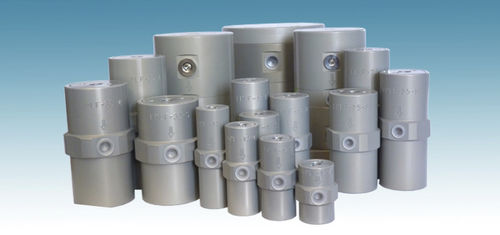

pneumatic vibrator / multi-product / conveying / for bulk materials
FPLF series

{{requestButtons}}

Characteristics

  • Operation:

    pneumatic

  • Product applications:

    multi-product, conveying, for bulk materials, filling, for food products

  • Type:

    linear, ram

  • Other characteristics:

    explosion-proof, aluminum

  • Rotational speed:

    Max.: 9,300 rpm (58,433.6 rad.min-1)

    Min.: 1,800 rpm (11,309.7 rad.min-1)

  • Force:

    Max.: 6,150 N

    Min.: 32 N

Description

Lubrication-free pneumatic vibrators for linear vibration with unlimited fine-tuning facilities for amplitude and frequency. Wide range.

Properties
Quiet and efficient
Rated frequency 1,800 – 9,300 vpm
Force 32 – 6,150 N
Continuously variable
Can be used up to 85°C
Resistant to extreme environmental conditions

Field of application
For foodstuffs and pharmaceuticals, complies with FDA specifications
Driving conveyor and discharge chutes
Loosening or compacting of bulk materials
Starting up of mechanical processes
Filling facilities
