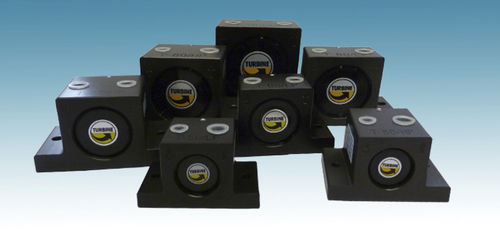

turbine vibrator / pneumatic / multi-product / for hoppers
T series

{{requestButtons}}

Characteristics

  • Operation:

    pneumatic

  • Product applications:

    multi-product, for hoppers, for bulk materials, transport, for powders, for pipework

  • Type:

    rotary, turbine

  • Rotational speed:

    Max.: 23,000 rpm (144,513.3 rad.min-1)

    Min.: 6,500 rpm (40,840.7 rad.min-1)

  • Force:

    Max.: 6,060 N

    Min.: 600 N

Description

High speed and high working torque for strong vibration at large amplitude. Wide range.

Properties
Rated frequency 6,500 – 23,000 rpm
Centrifugal force 600 – 6,060 N
Continuously variable
Can be used up to 100°C
Resistant to extreme environmental conditions

Field of application
Emptying of bunkers
Screen filters
Vibrating tables
Preventing adhesions in pipelines and silos
Transporting of fine powders
Moving of bulk material
