pneumatic vibrator / for bulk materials / transport / for powders
GT RF series

{{requestButtons}}

Characteristics

  • Operation:

    pneumatic

  • Product applications:

    for bulk materials, transport, for powders, for food products, for pharmaceutical products, for pipework

  • Type:

    turbine

  • Other characteristics:

    explosion-proof, aluminum

  • Rotational speed:

    Max.: 37,000 rpm (232,477.9 rad.min-1)

    Min.: 14,000 rpm (87,964.6 rad.min-1)

  • Force:

    Max.: 5,700 N

    Min.: 750 N

Description

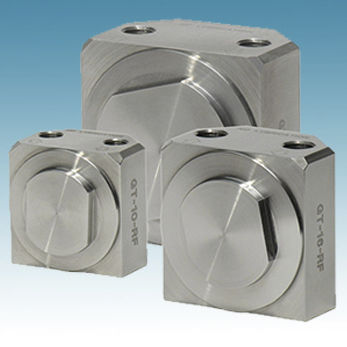

Pneumatic turbine vibrators made of stainless-steel.

Properties
Lubrication-free
Low noise level
Strong vibration by means of high speed and eccentric working torques
Rated frequency 14,000 – 37,000 rpm
Centrifugal force 750 – 5,700 N
Continuously variable
Can be used up to 150°C
Resistant to extreme environmental conditions

Field of application
For foodstuffs and pharmaceuticals, complies with FDA specification
Emptying of bunkers
Screen filters
Vibrating tables
Preventing adhesion in pipelines and silos
Transporting of fine powders
Moving of bulk materials
