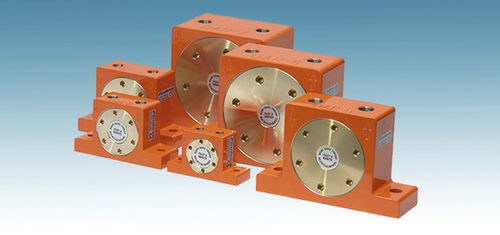

roller vibrator / pneumatic / multi-product / for concrete
DAR series

{{requestButtons}}

Characteristics

  • Operation:

    pneumatic

  • Product applications:

    multi-product, for concrete, for silos, for plastics

  • Type:

    rotary, roller

  • Other characteristics:

    aluminum

  • Rotational speed:

    Max.: 38,000 rpm (238,761 rad.min-1)

    Min.: 7,800 rpm (49,008.8 rad.min-1)

  • Force:

    Max.: 12,000 N

    Min.: 1,680 N

Description

Roller vibrators, especially for concrete and other heavy-duty applications. Wide range.

Properties
High torque
Rated frequency 7,800 – 38,000 rpm
Centrifugal force 1,680 – 12,000 N
Continuously variable
Can be used up to 150°C
Resistant to extreme environmental conditions

Field of application
Compacting of plastic and concrete
Assisting the flow of material in silos and hoppers
Separating of diffrent sized products on sieve
