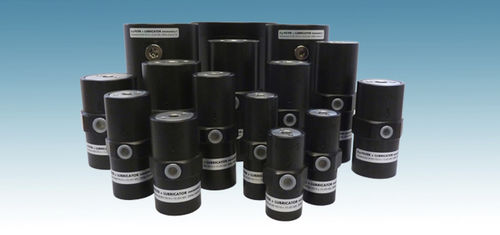

pneumatic vibrator / conveying / filling / for bulk materials
FP series

{{requestButtons}}

Characteristics

  • Operation:

    pneumatic

  • Product applications:

    conveying, filling, for bulk materials

  • Type:

    linear, ram

  • Other characteristics:

    explosion-proof

  • Rotational speed:

    Max.: 9,300 rpm (58,433.6 rad.min-1)

    Min.: 1,800 rpm (11,309.7 rad.min-1)

  • Force:

    Max.: 6,150 N

    Min.: 32 N

Description

Pneumatic piston vibrators for linear vibration with unlimited fine-tuning facilities for amplitude and frequency. Wide range.

Properties
Quiet and efficient
Rated frequency 1,800 – 9,300 vpm
Force 32 – 6,150 N
Continuously variable
Can be used up to 150°C
Resistant to extreme environmental conditions

Field of application
Driving conveyor and discharge chutes
Loosening or compacting of bulk materials
Starting up of mechanical processes
Filling facilities
