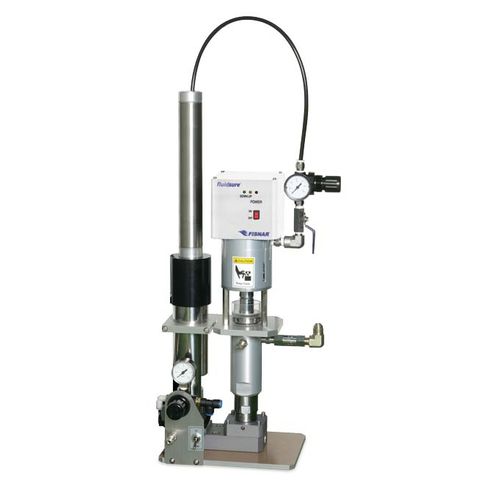

Chemical pump EP1310C

electriccartridgestationary

The EP1310C 1/10 Gallon Single Cartridge Pump System is a powerful, medium-ratio system for controlled fluid transfer from 1/10th gallon (310 ml) plastic cartridges. Suitable for silicone-type fluids, this low-pulse pump design can be used with a dispense valve or connected to an automatic production robot for controlled dispensing applications. The EP1310C is designed to easily transfer material for controlled dispensing via a high pressure valve, providing a maximum of 995 psi regulated material pressure. The cartridge is contained with a metal-jacketed cylinder. • Material delivered air-free • Wipe-clean action • High-pressure regulation • Pressure piston assist with adjustable piston pressure • Electrical extruder motor • Simple load mechanism for easy cleaning and easy automatic systems hook up Size : 8.86 x 6.69 x 25.55” (225 x 170 x 649mm) Pump Input for Sensing : 220 VAC 50-60 Hz - 20 watts Air Input Pressure : 30 - 100psi Maximum Output Pressure : 995psi Fluid Viscosity Range : 10,000 - 600,000cps Ratio : 15 Minimum Volume / Stroke : 0.01cc / shot Air Consumption : 80 I / min Cartridge Size : 300 - 310ml Air Inlet / Fluid Outlet Size : 1/4” NPT (f) Wetted Parts : 304 and 17-4 ph Stainless Steel, PTFE, Viton®, and PEEK seals Weight : 15kg
