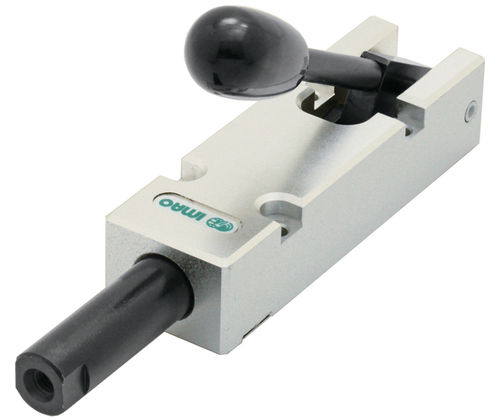

Clamp QLPCT series

Product overview
Precision thrust clamps provide repeatable clamping at the same position through accurate projection of the clamping bar. A spring-loaded mechanism maintains constant clamping force. The handle includes a click alert to signal complete clamping. The clamping bar has a tapped end to accept attachments. The clamp mounts from the top using four mounting holes. The handle is replaceable. Body material: AC7A anodized aluminum. Clamping bar material: 1045 steel. Knob material: black phenolic plastic.

Available part options

• QLPCT20-07 — SKU 142203; Initial clamping force: 12 lbs; Final clamping force: 20 lbs
• QLPCT20-13 — SKU 142204; Initial clamping force: 20 lbs; Final clamping force: 40 lbs

Technical specifications

• Precision thrust clamp design for repeatable clamping at the same position
• Spring-loaded clamp providing constant clamping force
• Handle with click alert indicating complete clamping
• Clamping bar with tapped end to accept attachments
• Top mounting using four mounting holes
• Replaceable handle
• Body material: AC7A anodized aluminum
• Clamping bar material: 1045 steel
• Knob material: black phenolic plastic
• Available part options: QLPCT20-07 (initial 12 lbs, final 20 lbs); QLPCT20-13 (initial 20 lbs, final 40 lbs)
