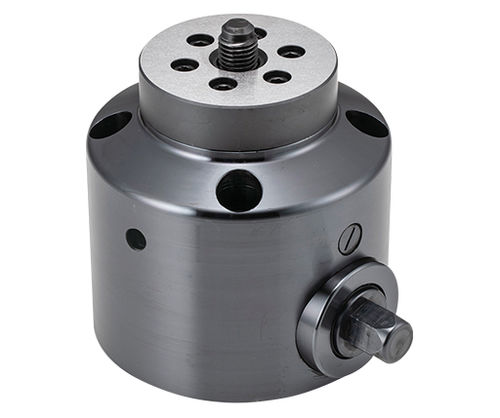

Mechanical pull clamp PTPD1 series

hexagonalnut

Description
Nut-runner compatible pull-down clamp PTPD1 provides fast, repeatable workpiece retention for automated production and precision machining. Ideal for 5-axis machining and horizontal machining centers, the clamp pulls the workpiece into a tapped hole using a screw actuated by a hex head. The hex head accepts manual operation or impact wrench/nut runner use for integration into automated lines.

Materials
Body: 1045 steel, black oxide finish. Hex head: 4140 steel, induction hardened, black oxide. Riser: 1045 steel, quenched and tempered, black oxide. Clamping screw: 4115 steel, carburized and hardened, black oxide.


Part Options (selectable)

• Thread mm: M12×1.75, M16×2.00
• Stroke mm: 18, 21
• Allowable Tightening Torque (Lbs): 20.0, 33.2

Variants (table)
Header: Detail | ID | SKU | Part Number | Thread mm | D | D1 | D2 | Dp | H ±0.02 | H1 | H2 | H3 | T1 Lifting Holes | S Stroke | W | Clamping Force ft/lbs | Allowable Tightening Torque Lbs | PN
Row: Detail | 151223 | PTPD1-12 | PTPD1-12 | M12×1.75 | 125 | 80 | 8 | 104 | 125 | 105 | 30 | 20 | M10x1.50 | 18 | 19 | 2248 | 20.0 | (empty)
Row: Detail | 151224 | PTPD1-16 | PTPD1-16 | M16×2.00 | 125 | 80 | 8 | 104 | 125 | 105 | 30 | 20 | M16×2.00 | 21 | 19 | 3372 | 33.2 | (empty)

Technical specifications

• Model: PTPD1
• Function: Nut-runner compatible pull-down clamp; hex head for manual or impact wrench operation; suited for automated production and 5-axis / horizontal machining centers
• Body material & finish: 1045 steel, black oxide
• Hex head material & treatment: 4140 steel, induction hardened, black oxide
• Riser: 1045 steel, quenched and tempered, black oxide
• Clamping screw: 4115 steel, carburized hardened, black oxide
• Available threads: M12×1.75 and M16×2.00
• Available strokes: 18 mm (for M12), 21 mm (for M16)
• Part numbers / variants: PTPD1-12 (ID 151223), PTPD1-16 (ID 151224)
• Clamping force (ft/lbs): PTPD1-12 = 2248 ft/lbs; PTPD1-16 = 3372 ft/lbs
• Allowable tightening torque (Lbs): PTPD1-12 = 20.0 Lbs; PTPD1-16 = 33.2 Lbs
• Typical lifting hole thread: PTPD1-12 = M10x1.50; PTPD1-16 = M16×2.00
• Typical overall dimensions: D = 125 mm, D1 = 80 mm, D2 = 8 mm, Dp = 104 mm, H = 125 mm, H1 = 105 mm, H2 = 30 mm, W = 19 mm
