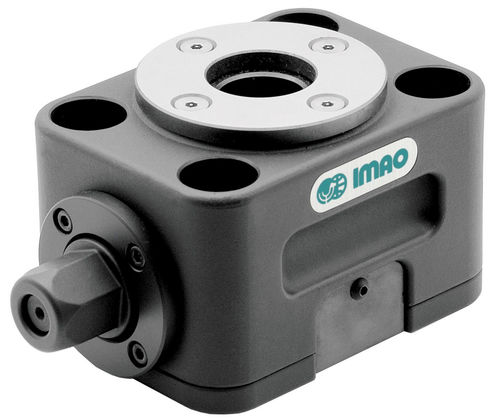

Nut pull clamp PTPD

roundmechanical

Product overview
Block pull clamps provide very quick and secure fastening and are ideal for 5-axis machining. They consist of a clamp base used with clamping screws. Block pull clamps mount under a workpiece, allowing the machined surface to be accessible to the cutting tool. In addition to tightening with a wrench, this clamp can be operated with a nut runner for automation and with an impact wrench to reduce operator effort. Locating repeatability using Block Pull Clamps alone is ±0.3.

Materials & finishes
Body made from 1045 steel with a black oxide finish. Contact pad made from 4140 alloy steel, quenched and tempered, with a black oxide finish. Locating bushing made from 4135 steel, quenched and tempered, with a black oxide finish.

Part table (selected row)
ID: 129797
SKU: PTPD12
Part Number: PTPD12
D (mm): 60
D1 (mm): 26
D2 (mm): 14 (+0/-0.2)
L (mm): 95
W (mm): 70
H (mm): 63 (±0.01)
Clamping Force (Lbs): 2,700
Screw Torque (ft/lbs): 30

Technical specifications

• Ideal for 5-axis machining; mounts under the workpiece to expose the machined surface to the cutting tool
• Can be tightened with a wrench, nut runner (automation), or impact wrench
• Locating repeatability: ±0.3
• Body material: 1045 steel, black oxide finish
• Contact pad material: 4140 alloy steel, quenched and tempered, black oxide finish
• Locating bushing material: 4135 steel, quenched and tempered, black oxide finish
• Clamping head diameter: 60 mm
• Hole diameter: 26 mm
• Bushing diameter: 14 mm
• Body length: 95 mm
• Overall width: 70 mm
• Overall height: 63 mm
• Clamping force (spanner/socket wrench): 2,700 Lbs
• Screw torque (spanner/socket wrench): 30 ft/lbs
