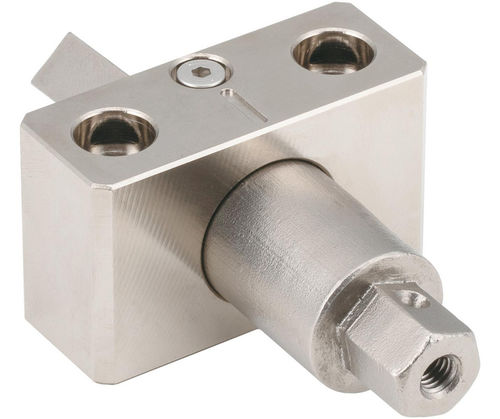

Hexagonal pull clamp QLPDW-RC

square

Overview
This extension unit enables remote operation of QLPDW pull-down clamps. It connects to the clamp via an extension bar and a hex socket (not included). The hex head can be turned manually or driven with an impact wrench, allowing flexible actuation from a distance. The body is electroless nickel-plated 1045 steel, the hexagonal shaft is 304 stainless steel, and the square shaft is electroless nickel-plated SS400 steel. Compatible with QLPDW85-300 clamp.

Part option (excerpt)

• ID: 189671
• SKU: QLPDW85-RC
• Part Number: QLPDW85-RC
• Thread: M6 x 1.00
• D (mm): 22
• Body Length (mm): 22
• Extension Arms Length (mm): 20
• Length (mm): 18.5 / 37
• Head Length (mm): 14
• Overall Width (mm): 55
• Between Mounting Hole Centers Width (mm): 36
• Overall Height (mm): 33
• To Underside of C'Bore Height (mm): 26
• To Center of Housing Height (mm): 16
• For use with Clamp: QLPDW85-300

Technical specifications

• Model / Series: QLPDW-RC
• Thread: M6 x 1.00
• Shaft diameter: 22 mm
• Body length: 22 mm
• Extension arms length: 20 mm
• Lengths (listed): 18.5 mm and 37 mm
• Head length: 14 mm
• Overall width: 55 mm
• Between mounting hole centers (width): 36 mm
• Overall height: 33 mm
• Height to underside of C'Bore: 26 mm
• Height to center of housing: 16 mm
• Materials: body – electroless nickel-plated 1045 steel; hexagonal shaft – 304 stainless steel; square shaft – electroless nickel-plated SS400 steel
• Operation: manual or impact-wrench drive; connects via extension bar and hex socket (not included)
• Compatible clamp: QLPDW85-300
