Clamp BJ152 series

Product Overview

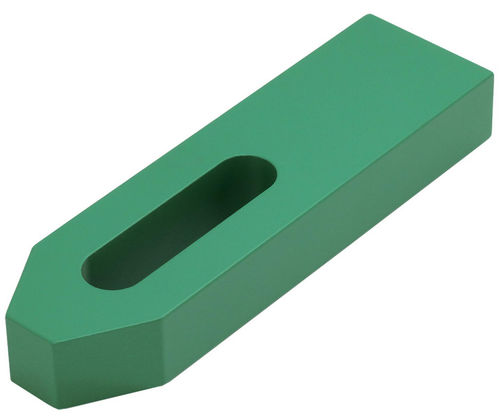

Strap clamp BJ152 designed to hold down dies, fixtures and workpieces on a variety of machine tools. Features a long mounting slot for extended clamp travel and positioning. Double-tapered profile (tapered at both ends) with a coated finish; manufactured from quenched and tempered 1045 alloy steel.

Applications

• Clamping of dies and fixtures on milling machines, machining centers and other production equipment
• Holding workpieces for repeatable, high-force clamp operations

Product Types

• BJ152 — Strap Clamps (tapered, coated finish)
• BJ152 — Strap Clamps (double-tapered)

Part Options

• 142347 | SKU: BJ152-24200 | Part No: BJ152-24200 | D: 26 mm | L: 200 mm | L1: 54 mm | W: 70 mm | H: 30 mm | Clamping Force Min: 6,500 lbs | Clamping Force Max: 10,990 lbs | Screw Torque: 236 ft/lbs
• 142348 | SKU: BJ152-24250 | Part No: BJ152-24250 | D: 26 mm | L: 250 mm | L1: 79 mm | W: 70 mm | H: 35 mm | Clamping Force Min: 6,720 lbs | Clamping Force Max: 11,870 lbs | Screw Torque: 236 ft/lbs

Technical specifications

• Model: BJ152
• Use: Hold down dies, fixtures and workpieces on a variety of machines
• Mounting: Long mounting slot for wide range of clamp movement and positioning
• Shape: Double-tapered (tapered on both ends)
• Material: 1045 alloy steel
• Heat treatment: Quenched and tempered
• Finish: Coated finish
• Available variants and key dimensions/performance:
  • BJ152-24200 — D: 26 mm; L: 200 mm; L1: 54 mm; W: 70 mm; H: 30 mm; Clamping Force Min: 6,500 lbs; Clamping Force Max: 10,990 lbs; Screw Torque: 236 ft/lbs
  • BJ152-24250 — D: 26 mm; L: 250 mm; L1: 79 mm; W: 70 mm; H: 35 mm; Clamping Force Min: 6,720 lbs; Clamping Force Max: 11,870 lbs; Screw Torque: 236 ft/lbs
• Units: dimensions in millimetres (mm); forces in pounds (lbs); torque in ft/lbs

Media / Documents
Specifications PDF available for this product.
