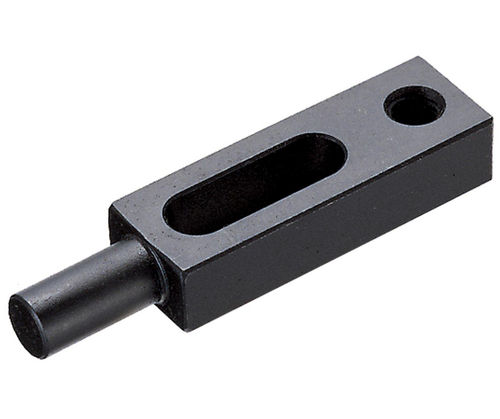

Clamp BJ150 series

Overview
Used to hold down dies, fixtures and workpieces on a wide variety of machines. These tapped-nose clamps deliver high clamping forces and allow precise positioning thanks to a long mounting slot. Manufactured from 1045 alloy steel, quenched and tempered, with a black oxide finish for corrosion resistance.

Product Types

• Straight nose (current)
• Angled nose (sister product)

Available Parts (table)
ID | SKU | Part Number | Thread | D | D1 | L | L1 | L2 | L3 | L4 | W | H | Clamping Force Min (Lbs) | Clamping Force Max (Lbs) | Screw Torque (ft/lbs)
142314 | BJ150-08063 | BJ150-08063 | M8×1.25 | 10 | 9 | 63 | 14 | 8 | 18 | 15 | 19 | 12 | 600 | 1,100 | 10
142315 | BJ150-08075 | BJ150-08075 | M8×1.25 | 10 | 9 | 75 | 20 | 8 | 18 | 20 | 19 | 12 | 490 | 1,030 | 10

Part Options

• Overall Length (L): 63 mm, 75 mm
• Cylinder Length (D1): 14 mm, 20 mm

Media
Product technical data and specifications available as a PDF product specification sheet.

Technical specifications

• Material: 1045 alloy steel, quenched and tempered
• Finish: black oxide
• Function / Application: hold down dies, fixtures and workpieces on a wide variety of machines
• Design feature: long mounting slot for wide range of clamp movement and precise positioning
• Provides high clamping forces (see table for values)
• Product types: BJ150 straight nose (current) and BJ150 angled nose (sister product)
• Available thread: M8×1.25
• Available overall lengths: 63 mm and 75 mm
• Available cylinder lengths: 14 mm and 20 mm
• Example part BJ150-08063 – L = 63 mm, D1 = 14 mm, Clamping force min 600 lbs, max 1,100 lbs, screw torque 10 ft/lbs
• Example part BJ150-08075 – L = 75 mm, D1 = 20 mm, Clamping force min 490 lbs, max 1,030 lbs, screw torque 10 ft/lbs
