Clamp F112 series

Product overview

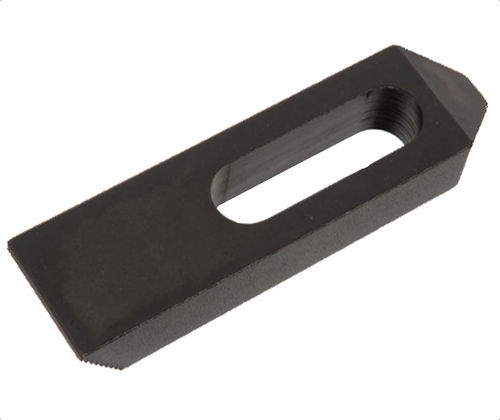

Used to hold down dies, fixtures and workpieces on a wide variety of machines. The teeth engage steel and aluminum step blocks and enable height adjustment in 1/8” increments. The long slotted mounting hole allows broad clamp movement and precise positioning. Constructed from heat‑treated steel with a black oxide finish for consistent dimensions and wear resistance.

Product types

• F112 — Strap Clamps: steel; use with F113/F114 step blocks

Part options (table)
ID | SKU | Part Number | Length (in) | L1 (in) | L2 (in) | L3 Tip (in) | W Width (in) | W1 Slot (in) | W1 Bolt Size | W2 Tip (in) | H Height (in) | H1 Tip (in)
131005 | F112-0640 | F112-0640 | 2-1/2 | 0.84 | 0.81 | 0.48 | 1 | 0.44 | 5-16 or 3/8 | 0.44 | 1/2 | 0.22
131006 | F112-0664 | F112-0664 | 4 | 1.03 | 1.44 | 0.64 | 1 | 0.44 | 5-16 or 3/8 | 0.25 | 5/8 | 0.25
131007 | F112-0696 | F112-0696 | 6 | 1.16 | 2.19 | 0.70 | 1-1/8 | 0.44 | 5-16 or 3/8 | 0.31 | 3/4 | 0.34
131008 | F112-0840 | F112-0840 | 2-1/2 | 0.91 | 0.69 | 0.48 | 1-1/8 | 0.56 | 1/2 | 0.56 | 1/2 | 0.22
131009 | F112-0864 | F112-0864 | 4 | 1.16 | 1.31 | 0.70 | 1-1/4 | 0.56 | 1/2 | 0.44 | 3/4 | 0.34
131010 | F112-0896 | F112-0896 | 6 | 1.28 | 2.06 | 0.70 | 1-1/4 | 0.56 | 1/2 | 0.44 | 7/8 | 0.47
131011 | F112-1040 | F112-1040 | 2-1/2 | 0.97 | 0.56 | 0.48 | 1-1/4 | 0.69 | 5/8 | 0.69 | 5/8 | 0.34
131012 | F112-1064 | F112-1064 | 4 | 1.28 | 1.19 | 0.70 | 1-1/2 | 0.69 | 5/8 | 0.69 | 3/4 | 0.34
131013 | F112-1096 | F112-1096 | 6 | 1.41 | 1.94 | 0.78 | 1-1/2 | 0.69 | 5/8 | 0.59 | 7/8 | 0.42
131014 | F112-1228 | F112-1228 | 8 | 1.91 | 2.19 | 1.05 | 1-3/4 | 0.81 | 3/4 | 0.53 | 1-1/8 | 0.52

Notes

• Teeth engage both steel and aluminum step blocks, enabling height adjustment in 1/8” increments.
• Long slotted mounting hole provides a wide range of clamp movement and precise positioning.
• Material: heat‑treated steel with black oxide finish.

Technical characteristics / specifications

• Model / Series: F112
• Type: Strap clamp, stepped for height adjustment
• Material: Heat‑treated steel
• Finish: Black oxide
• Height adjustment: in 1/8” increments (teeth engage step blocks)
• Compatible step blocks: F113 / F114
• Mounting: long slotted hole for adjustable positioning
• Available part sizes & dimensions: see Part options table above (SKUs F112-0640 to F112-1228)
