Manually-controlled clamping element F114 series

mechanicalworkpiecesteel

Product Overview

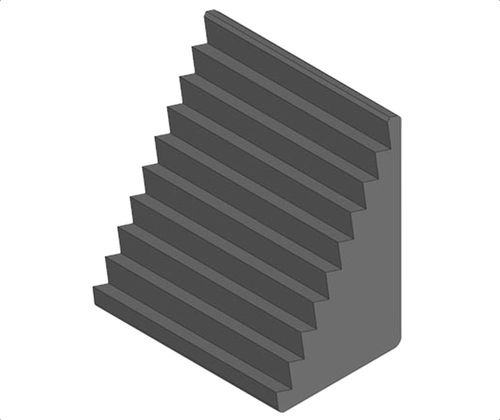

Used to provide vertical or horizontal support for strap clamps. Height is adjusted at 1/8 in increments vertically or 1/16 in increments horizontally. Each part number includes two halves of the block. Made from steel with a black oxide finish. Available in steel (F114) and aluminum (F113) configurations.

Part Numbers and Dimensions
ID | SKU | Part Number | L in | L1 in | W in | H in | H1 in | Capacity of Full Block (Lbs)
130861 | F114-1612 | F114-1612 | 11/16 | 1/16 | 1 | 1-1/8 | 1/8 | 3/4 to 1-1/2
130862 | F114-1618 | F114-1618 | 1-1/32 | 1/16 | 1 | 1-3/4 | 1/8 | 1-1/8 to 2-1/2
130863 | F114-1640 | F114-1640 | 2-3/8 | 1/16 | 1 | 3-7/8 | 1/8 | 2-1/2 to 6
130864 | F114-2424 | F114-2424 | 1-1/2 | 1/16 | 1-1/2 | 2-3/8 | 1/8 | 1-1/2 to 3-3/4
130865 | F114-2440 | F114-2440 | 2-3/8 | 1/16 | 1-1/2 | 3-7/8 | 1/8 | 2-1/2 to 6
130866 | F114-2456 | F114-2456 | 3-5/16 | 1/16 | 1-1/2 | 5-1/2 | 1/8 | 3-1/2 to 9
130867 | F114-3224 | F114-3224 | 1-1/2 | 1/16 | 2 | 2-3/8 | 1/8 | 1-1/2 to 3-3/4
130868 | F114-3256 | F114-3256 | 3-5/16 | 1/16 | 2 | 5-1/2 | 1/8 | 3-1/2 to 9

Media

• How To Use (illustration/graphic)

Features / Technical specifications

• Material: Steel (black oxide finish); aluminum option available (different part series)
• Adjustment increments: Vertical 1/8 in increments; Horizontal 1/16 in increments
• Each part number includes two halves of the block
• Multiple part sizes available (see Part Numbers and Dimensions table for L, L1, W, H, H1 and capacity ranges)
• Designed to provide vertical or horizontal support for strap clamps
