T slot clamping set F102 series

flangedblack oxide-finishedsteel

Overview

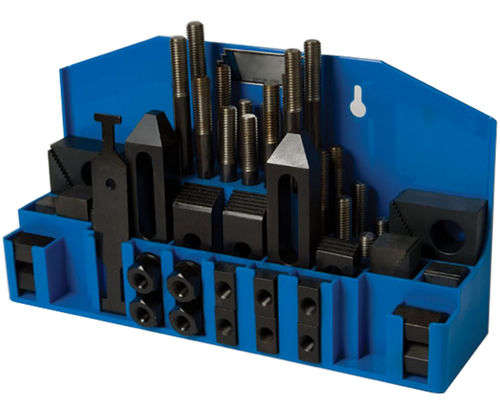

Strap clamp kit with 1-1/2 inch steel blocks for use with machine tables that have T-slots. Blocks are steel with a black oxide finish. Clamps are heat-treated steel with a black oxide finish. Note: holder shown in photo is not included.

Product Types

• Studs
• T-slot nut
• Flanged nuts
• Coupling nuts
• Step blocks
• Step clamps

Part Options (table)
ID | SKU | Part Number | Stud (in) | Table Slot (in) | Block Width (in) | T-Nut | Step Clamp 2 ea | Med Step Clamp 2 ea | Large Step Clamp 2 ea | Step Block 2 ea | Med Step Block 2 ea | Large Step Block 2 ea | PN
130968 | F102-0809 | F102-0809 | 1/2-13 | 9/16 | 1-1/2 | F116-0809 | F112-0840 | F112-0864 | F112-0896 | F114-2424 | F114-2440 | F114-2456
130969 | F102-0810 | F102-0810 | 1/2-13 | 5/8 | 1-1/2 | F116-0810 | F112-0840 | F112-0864 | F112-0896 | F114-2424 | F114-2440 | F114-2456
130970 | F102-0811 | F102-0811 | 1/2-13 | 11/16 | 1-1/2 | F116-0811 | F112-0840 | F112-0864 | F112-0896 | F114-2424 | F114-2440 | F114-2456
130971 | F102-1011 | F102-1011 | 5/8-11 | 11/16 | 1-1/2 | F116-1011 | F112-1040 | F112-1064 | F112-1096 | F114-2424 | F114-2440 | F114-2456
130972 | F102-1012 | F102-1012 | 5/8-11 | 3/4 | 1-1/2 | F116-1012 | F112-1040 | F112-1064 | F112-1096 | F114-2424 | F114-2440 | F114-2456
130973 | F102-1013 | F102-1013 | 5/8-11 | 13/16 | 1-1/2 | F116-1013 | F112-1040 | F112-1064 | F112-1096 | F114-2424 | F114-2440 | F114-2456

Media
Set Components (PDF) available.

Features / Technical specifications

• Model / Series: F102
• Type: Strap clamp kit
• Block width: 1-1/2 inch
• Block material/finish: steel with black oxide finish
• Clamp material/finish: heat-treated steel with black oxide finish
• Compatibility: for machine tables with T-slots; multiple stud and table-slot size options available (examples: 1/2-13 and 5/8-11 studs; table slot sizes from 9/16 to 13/16 inch shown)
• Included/associated components (varies by part number): studs, T-nuts, step clamps (various sizes), step blocks (various sizes), flanged nuts, coupling nuts
• Available part numbers / variants: F102-0809, F102-0810, F102-0811, F102-1011, F102-1012, F102-1013 (each variant pairs with specific T-nut / clamp / block part references)
