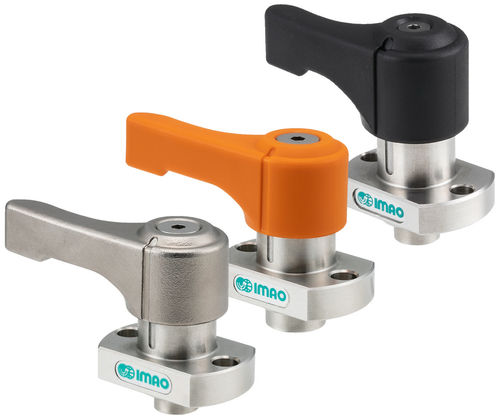

Clamp QCPS series

Description
These push lock clamps provide easy, tool-less locking with a 90-degree turn of the handle for slide and angle adjustment. They are versatile enough to clamp on various objects such as square bars, round shafts and linear rails in many sizes. An internal spring keeps the clamping force constant to prevent over/under tightening. An indication line and the touch of a click allow user more secure and reliable operation.

Tip types and materials
Two tip types are available: a flat tip that minimizes damage to an object, and a diamond tip that provides high holding force. Choose a black or orange plastic handle, or stainless steel. For clamping onto a round shaft, a shaft collar is also available. Clamp body made from 303 stainless steel. Handle made from polyamide or 304 stainless steel.

Features

• Tool-less locking with 90° handle turn
• Internal spring for constant clamping force (prevents over/under tightening)
• Indication line and tactile click for secure operation
• Two tip types: Flat (minimizes damage) and Diamond (high holding force)
• Handle options: Black plastic, Orange plastic, or Stainless Steel
• Clamp body: 303 stainless steel; Handle: polyamide or 304 stainless steel
• Suits square bars, round shafts and linear rails; shaft collar available for round shafts

Part Options (table rows shown as: ID | SKU | Handle Color/Material | Tip Type | D (mm) | D1 (mm) | W (mm) | L (mm) | H (mm) | H1 | H2 | R | W1 | Thread | S Clamping Stroke | Clamping Range | Clamping Force (Lbs) | Proper Shaft Collars)
151235 | QCPS0828-6-BK-D | Black Plastic | Diamond | 10.0 | 14.5 | 28 | 20 | 35.5 | 6 | 5.5 | 30 | 22 | M2 | 5.8-6.5 | 5.9-6.3 | 40.5 | QCPSC0828-20, QCPSC0828-25
151236 | QCPS0828-6-BK-F | Black Plastic | Flat | 8.5 | 14.5 | 28 | 20 | 35.5 | 6 | 5.5 | 30 | 22 | M2 | 5.8-6.5 | 5.9-6.3 | 40.5 | QCPSC0828-20, QCPSC0828-25
151237 | QCPS0828-6-OG-D | Orange Plastic | Diamond | 10.0 | 14.5 | 28 | 20 | 35.5 | 6 | 5.5 | 30 | 22 | M2 | 5.8-6.5 | 5.9-6.3 | 40.5 | QCPSC0828-20, QCPSC0828-25
151238 | QCPS0828-6-OG-F | Orange Plastic | Flat | 8.5 | 14.5 | 28 | 20 | 35.5 | 6 | 5.5 | 30 | 22 | M2 | 5.8-6.5 | 5.9-6.3 | 40.5 | QCPSC0828-20, QCPSC0828-25
151239 | QCPS0828-6-S-D | Stainless Steel | Diamond | 10.0 | 14.5 | 28 | 20 | 35.5 | 6 | 5.5 | 30 | 22 | M2 | 5.8-6.5 | 5.9-6.3 | 40.5 | QCPSC0828-20, QCPSC0828-25
151240 | QCPS0828-6-S-F | Stainless Steel | Flat | 8.5 | 14.5 | 28 | 20 | 35.5 | 6 | 5.5 | 30 | 22 | M2 | 5.8-6.5 | 5.9-6.3 | 40.5 | QCPSC0828-20, QCPSC0828-25
151241 | QCPS1036-6-BK-D | Black Plastic | Diamond | 14.0 | 17.5 | 36 | 24 | 39.0 | 8 | 5.3 | 45 | 28 | M3 | 5.8-6.5 | 5.9-6.3 | 74.2 | QCPSC1036-20, QCPSC1036-25
151242 | QCPS1036-6-BK-F | Black Plastic | Flat | 10.5 | 17.5 | 36 | 24 | 39.0 | 8 | 5.3 | 45 | 28 | M3 | 5.8-6.5 | 5.9-6.3 | 74.2 | QCPSC1036-20, QCPSC1036-25
151243 | QCPS1036-6-OG-D | Orange Plastic | Diamond | 14.0 | 17.5 | 36 | 24 | 39.0 | 8 | 5.3 | 45 | 28 | M3 | 5.8-6.5 | 5.9-6.3 | 74.2 | QCPSC1036-20, QCPSC1036-25
151244 | QCPS1036-6-OG-F | Orange Plastic | Flat | 10.5 | 17.5 | 36 | 24 | 39.0 | 8 | 5.3 | 45 | 28 | M3 | 5.8-6.5 | 5.9-6.3 | 74.2 | QCPSC1036-20, QCPSC1036-25

Technical specifications

• Operation: 90° handle turn, tool-less locking
• Body material: 303 stainless steel
• Handle materials: polyamide (plastic) or 304 stainless steel
• Tip options: Flat or Diamond
• Internal spring for constant clamping force
• Indication line and tactile click for secure positioning
• Suitable target geometries: square bars, round shafts, linear rails
• Shaft collar options listed per SKU (example: QCPSC0828-20, QCPSC0828-25, QCPSC1036-20, QCPSC1036-25)
• Available threads and sizes shown in part options table (M2 and M3 variants with associated dimensions and clamping forces)
