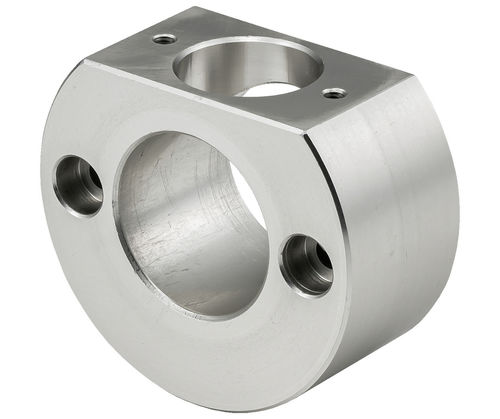

Aluminium shaft collar QCPSC series

Product description
These shaft collars are used with QCPS push lock clamps to hold round shafts. Paired with the push lock clamps, the clamping units provide tool-less locking with a 90° turn of the handle for slide and angle adjustment. Collar body made from A5052 anodized aluminum.

Compatibility

• Compatible with QCPS and QCPSS sliding locks (push lock clamps)

Part options (table)
ID | SKU | Part Number | D (mm) | H (mm) | D1 (mm) | L (mm) | W1 (mm) | T | D2 (mm) | W2 (mm) | L1 (mm) | Shaft Diameter (mm)
189645 | QCPSC0828-10 | QCPSC0828-10 | 10 | 11.0 | 40 | 20 | 22 | M2X0.40 Depth 4 | 14.7 | 28 | 16 | 10
189646 | QCPSC0828-12 | QCPSC0828-12 | 12 | 12.0 | 40 | 20 | 22 | M2X0.40 Depth 4 | 14.7 | 28 | 16 | 12
189647 | QCPSC0828-14 | QCPSC0828-14 | 14 | 13.0 | 40 | 20 | 22 | M2X0.40 Depth 4 | 14.7 | 28 | 16 | 14
189648 | QCPSC0828-15 | QCPSC0828-15 | 15 | 13.5 | 40 | 20 | 22 | M2X0.40 Depth 4 | 14.7 | 28 | 16 | 15
189649 | QCPSC0828-16 | QCPSC0828-16 | 16 | 14.0 | 40 | 20 | 22 | M2X0.40 Depth 4 | 14.7 | 28 | 16 | 16
151247 | QCPSC0828-20 | QCPSC0828-20 | 20 | 16.0 | 44 | 20 | 22 | M2X0.40 Depth 4 | 14.7 | 32 | 16 | 20
151248 | QCPSC0828-25 | QCPSC0828-25 | 25 | 18.5 | 48 | 20 | 22 | M2X0.40 Depth 4 | 14.7 | 36 | 16 | 25
189650 | QCPSC1036-10 | QCPSC1036-10 | 10 | 11.0 | 46 | 24 | 28 | M3X0.50 Depth 6 | 17.7 | 36 | 20 | 10
189651 | QCPSC1036-12 | QCPSC1036-12 | 12 | 12.0 | 46 | 24 | 28 | M3X0.50 Depth 6 | 17.7 | 36 | 20 | 12
189652 | QCPSC1036-14 | QCPSC1036-14 | 14 | 13.0 | 46 | 24 | 28 | M3X0.50 Depth 6 | 17.7 | 36 | 20 | 14


Technical specifications

• Body material: A5052 anodized aluminum
• Tool-less locking: 90° turn of handle for locking/unlocking
• Designed to hold round shafts in conjunction with QCPS / QCPSS push lock clamps
• Available part series: QCPSC0828 (uses M2 x 0.40 thread) and QCPSC1036 (uses M3 x 0.50 thread)
• Thread details: QCPSC0828 series = M2 x 0.40, depth 4; QCPSC1036 series = M3 x 0.50, depth 6
• Available shaft diameters (mm): 10, 12, 14, 15, 16, 20, 25
• Dimensional options (see Part Options table above) include values for D, H, D1, L, W1, T, D2, W2 and L1
• Finish: anodized
