Manual clamping unit QCSHL-DK

mechanicalmanually-controlledspring

Product overview

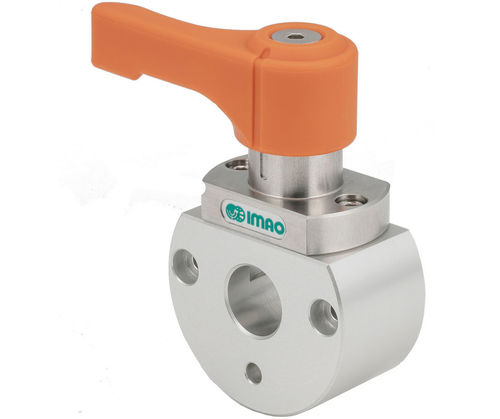

This push-lock clamp unit provides tool-less locking with a 90° turn of the handle for quick slide and angle adjustment. The pre-assembled unit mounts directly to 14 mm round shafts, eliminating the need for custom mounting hardware. An internal spring maintains constant clamping force to prevent over- or under-tightening, ensuring repeatable positioning in industrial applications.

Key features

• Tool-less locking with 90° handle turn for rapid locking/unlocking
• Pre-assembled unit for direct mounting on 14 mm round shafts
• Internal spring keeps clamping force constant to avoid over/under tightening
• Designed for slide and angle adjustment in fixtures and assemblies

Materials

• Clamp body: 303 stainless steel
• Handle: polyamide (orange)
• Collar: A5052 anodized aluminum

Technical specifications

• Hole diameter: 14 mm (shaft compatibility)
• Mounting hole diameter: 4 mm, depth 6 mm
• Distance between mounting posts diameter: 46 mm
• Body length: 24 mm
• Handle height: 39 mm
• Between mounting hole centers (width): 36 mm
• Clamping force: 90 lbs (≈401 N)

Installation & compatibility

• Pre-assembled for direct installation on round shafts; no custom brackets required
• Suitable for linear slides, adjustable fixtures and quick-positioning assemblies
• Ensure correct shaft Ø14 mm and use specified mounting hole dimensions for secure fixation
