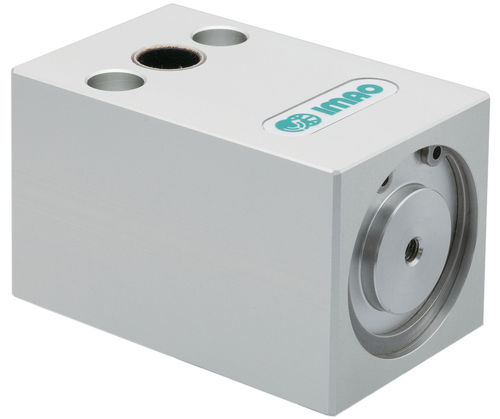

Pneumatically-operated clamping unit PSLC-M

pneumaticspringshaft

Overview
Pneumatic shaft-locking clamps PSLC-M provide rapid, secure locking of sliding shafts and spindles after position adjustment. The unit uses spring clamping when air is removed and pneumatic unclamping when air is supplied, ensuring clamping force is maintained despite potential air leakage. PSLC-M-S variants allow sensor mounting to monitor clamping condition. Body and cover are 5052A anodized aluminum; clamping shaft is 1045 steel with electroless nickel plating.

Product types

• PSLC — Pneumatic shaft-locking clamp, aluminum body
• PSLC-M-S — Version with sensor bracket for PSLC (sensor supplied separately)

Parts / Variants (specifications)

• PSLC10-3M | Type A | D: 10 mm | L: 80 mm | L1: 60 mm | W: 50 mm | W1: 32 mm | H: 50 mm | H1: 41 mm | M: M6 | Operating Air Pressure: 43–100 Lbs | Holding Torque: 4.5 Lbs | Sliding Load: 180 Lbs | Suitable Shaft Ø: 10 mm
• PSLC10-3M-S | Type B | D: 10 mm | L: 80 mm | L1: 60 mm | W: 50 mm | W1: 32 mm | H: 80 mm | H1: 41 mm | M: M6 | Operating Air Pressure: 43–100 Lbs | Holding Torque: 4.5 Lbs | Sliding Load: 180 Lbs | Suitable Shaft Ø: 10 mm
• PSLC12-3M | Type A | D: 12 mm | L: 80 mm | L1: 60 mm | W: 50 mm | W1: 32 mm | H: 50 mm | H1: 41 mm | M: M6 | Operating Air Pressure: 43–100 Lbs | Holding Torque: 6.5 Lbs | Sliding Load: 180 Lbs | Suitable Shaft Ø: 12 mm
• PSLC12-3M-S | Type B | D: 12 mm | L: 80 mm | L1: 60 mm | W: 50 mm | W1: 32 mm | H: 50 mm | H1: 41 mm | M: M6 | Operating Air Pressure: 43–100 Lbs | Holding Torque: 6.5 Lbs | Sliding Load: 180 Lbs | Suitable Shaft Ø: 12 mm
• PSLC16-3M | Type A | D: 16 mm | L: 95 mm | L1: 70 mm | W: 63 mm | W1: 42 mm | H: 63 mm | H1: 53 mm | M: M8 | Operating Air Pressure: 43–100 Lbs | Holding Torque: 15.5 Lbs | Sliding Load: 360 Lbs | Suitable Shaft Ø: 16 mm
• PSLC16-3M-S | Type B | D: 16 mm | L: 95 mm | L1: 70 mm | W: 63 mm | W1: 42 mm | H: 63 mm | H1: 53 mm | M: M8 | Operating Air Pressure: 43–100 Lbs | Holding Torque: 15.5 Lbs | Sliding Load: 360 Lbs | Suitable Shaft Ø: 16 mm
• PSLC20-3M | Type A | D: 20 mm | L: 95 mm | L1: 70 mm | W: 63 mm | W1: 42 mm | H: 63 mm | H1: 53 mm | M: M8 | Operating Air Pressure: 43–100 Lbs | Holding Torque: 17.0 Lbs | Sliding Load: 360 Lbs | Suitable Shaft Ø: 20 mm
• PSLC20-3M-S | Type B | D: 20 mm | L: 95 mm | L1: 70 mm | W: 63 mm | W1: 42 mm | H: 63 mm | H1: 53 mm | M: M8 | Operating Air Pressure: 43–100 Lbs | Holding Torque: 17.0 Lbs | Sliding Load: 360 Lbs | Suitable Shaft Ø: 20 mm
• PSLC25-3M | Type A | D: 25 mm | L: 130 mm | L1: 95 mm | W: 80 mm | W1: 56 mm | H: 80 mm | H1: 65 mm | M: M10 | Operating Air Pressure: 43–100 Lbs | Holding Torque: 25.8 Lbs | Sliding Load: 500 Lbs | Suitable Shaft Ø: 25 mm
• PSLC25-3M-S | Type B | D: 25 mm | L: 130 mm | L1: 95 mm | W: 80 mm | W1: 56 mm | H: 80 mm | H1: 65 mm | M: M10 | Operating Air Pressure: 43–100 Lbs | Holding Torque: 25.8 Lbs | Sliding Load: 500 Lbs | Suitable Shaft Ø: 25 mm

Technical specifications

• Clamping mechanism: spring clamping when air is removed; pneumatic unclamping when air is supplied (prevents loss of clamping force due to air leakage).
• Sensor compatibility: PSLC-M-S supports mounting of sensors to detect clamping condition; brackets available for sensor installation.
• Body & cover material: 5052A anodized aluminum.
• Clamping shaft material and finish: 1045 steel with electroless nickel plating.
• Available nominal shaft diameters: 10, 12, 16, 20, 25 mm (model-dependent).
• Operating air pressure (per table): commonly 43–100 Lbs (model-dependent).
• Holding torque (per table): 4.5–25.8 Lbs depending on model.
• Sliding load capacity (per table): 180–500 Lbs depending on model.
• Mounting thread sizes (M): M6, M8, M10 depending on model.
