Spring ball plunger BLB series

steel

Product Description

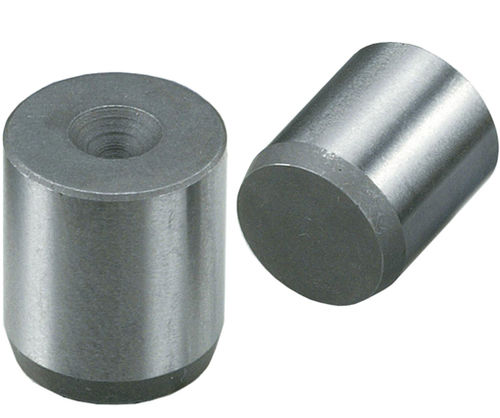

Receiver designed to house spring ball plungers for precise, repeatable detent positioning. Heat treated to resist wear and provide consistent performance. Manufactured from quenched and tempered steel (approx. Rc60-62) for industrial assemblies requiring reliable ball detents.

Part Options

• 150851 | BLB1 — D 5 mm; D1 1.5 mm; H 6 mm; V 90 mm; Thread M4
• 150852 | BLB2 — D 6 mm; D1 2.5 mm; H 7 mm; V 90 mm; Thread M5
• 150853 | BLB3 — D 7 mm; D1 3.0 mm; H 8 mm; V 90 mm; Thread M6
• 150854 | BLB4 — D 8 mm; D1 3.5 mm; H 9 mm; V 90 mm; Thread M8
• 150855 | BLB5 — D 12 mm; D1 5.0 mm; H 14 mm; V 90 mm; Thread M10
• 150856 | BLB6 — D 14 mm; D1 6.0 mm; H 16 mm; V 90 mm; Thread M12
• 150857 | BLB7 — D 16 mm; D1 8.0 mm; H 18 mm; V 90 mm; Thread M16
• 150858 | BLB8 — D 20 mm; D1 10.0 mm; H 22 mm; V 90 mm; Thread M20
• 150859 | BLB9 — D 24 mm; D1 12.0 mm; H 26 mm; V 90 mm; Thread M24

Notes
Heat treated to prevent wear and ensure repeated accurate positioning. Designed to be used with corresponding spring ball plungers; refer to the Part Options for matching thread sizes and part mapping.

Technical specifications

• Material: quenched and tempered steel
• Hardness: approximately Rc60-62
• Intended use: receiver for spring ball plungers / ball detents
• Finish / treatment: heat treated to resist wear and provide repeatable positioning
• Available variants: BLB1, BLB2, BLB3, BLB4, BLB5, BLB6, BLB7, BLB8, BLB9
• Matching thread sizes for ball plungers: M4, M5, M6, M8, M10, M12, M16, M20, M24
