Slotted plunger 03058 series

stainless steelspringhex socket

Overview

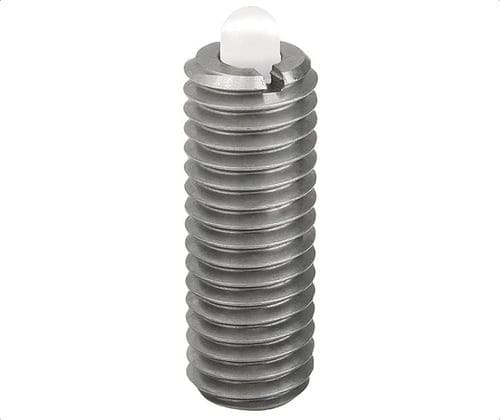

Pin-type spring plungers from the 03058 series. Stainless steel sleeve and spring with a plastic plunger pin. Hex end and slotted/top-slot options enable installation and torque engagement. Slots permit blind-hole or top-side fastening using the dedicated assembly tool (ordered separately). Units shown in inches.

Part options

• SKU 03058-AE | Part No: 03058-AE | Thread: #8-32 | D1: .06 in | L: .59 in | H: .06 in | T: .08 in | T1: .02 in | N: .02 in | S: .050 in | F1 (initial): 1.12 lbs | F2 (final): 3.6 lbs | Assembly tool PN: 03040-904
• SKU 03058-AG | Part No: 03058-AG | Thread: #8-36 | D1: .06 in | L: .59 in | H: .06 in | T: .08 in | T1: .02 in | N: .02 in | S: .050 in | F1 (initial): 1.12 lbs | F2 (final): 3.6 lbs | Assembly tool PN: 03040-904
• SKU 03058-A1 | Part No: 03058-A1 | Thread: #10-32 | D1: .09 in | L: .71 in | H: .09 in | T: .08 in | T1: .03 in | N: .03 in | S: 1/16 in | F1 (initial): 1.35 lbs | F2 (final): 4.5 lbs | Assembly tool PN: 03040-905
• SKU 03058-A2 | Part No: 03058-A2 | Thread: 1/4-20 | D1: .11 in | L: .79 in | H: .10 in | T: .10 in | T1: .04 in | N: .04 in | S: 5/64 in | F1 (initial): 1.57 lbs | F2 (final): 4.5 lbs | Assembly tool PN: 03040-906
• SKU 03058-AJ | Part No: 03058-AJ | Thread: 1/4-28 | D1: .11 in | L: .79 in | H: .10 in | T: .10 in | T1: .04 in | N: .04 in | S: 5/64 in | F1 (initial): 1.57 lbs | F2 (final): 4.5 lbs | Assembly tool PN: 03040-906
• SKU 03058-A3 | Part No: 03058-A3 | Thread: 5/16-18 | D1: .14 in | L: .87 in | H: .12 in | T: .12 in | T1: .06 in | N: .05 in | S: 3/32 in | F1 (initial): 2.02 lbs | F2 (final): 7.87 lbs | Assembly tool PN: 03040-908
• SKU 03058-A4 | Part No: 03058-A4 | Thread: 3/8-16 | D1: .16 in | L: .87 in | H: .12 in | T: .14 in | T1: .06 in | N: .06 in | S: 1/8 in | F1 (initial): 2.02 lbs | F2 (final): 7.87 lbs | Assembly tool PN: 03040-910
• SKU 03058-A5 | Part No: 03058-A5 | Thread: 1/2-13 | D1: .24 in | L: 1.10 in | H: .16 in | T: .20 in | T1: .08 in | N: .08 in | S: 5/32 in | F1 (initial): 2.25 lbs | F2 (final): 12.36 lbs | Assembly tool PN: 03040-912
• SKU 03058-A6 | Part No: 03058-A6 | Thread: 5/8-11 | D1: .30 in | L: 1.26 in | H: .20 in | T: .24 in | T1: .10 in | N: .10 in | S: 3/16 in | F1 (initial): 10.12 lbs | F2 (final): 22.48 lbs | Assembly tool PN: 03040-916

Features / Technical specifications

• Series: 03058 series
• Type: Pin-type spring plunger with hex end and slotted/top-slot fastening option
• Body & spring material: Stainless steel sleeve and spring (natural finish)
• Plunger pin material: Plastic
• Top features: Slots on top end allow blind-hole or top-side fastening with assembly tool
• Assembly tool: Required but sold separately; each SKU row references a specific assembly tool PN
• Units: Dimensions shown in inches
• Available thread sizes and dimensional ranges: see Part options list for thread, D1, L, H, T, T1, N, S and spring forces F1/F2 per SKU
