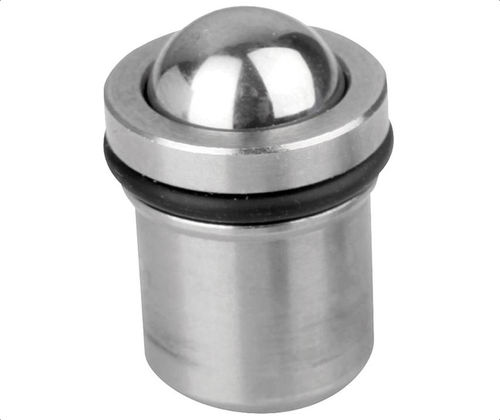

Stainless steel ball plunger 03065 series

ball bearingspring

Overview
O-ring retention secures the plunger for vertical and overhead applications. Body, ball and spring are stainless steel; the ball is hardened. O-ring material: Buna-N. These non-threaded (press-fit) metric ball-type spring plungers are intended for positioning, indexing and retention in industrial assemblies and fixtures.

Part Options (table)
ID | SKU | Part Number | D (mm) | D1 (mm) | D2 (mm) | D3 (mm) | D4 (mm) | H (mm) | L (mm) | L1 (mm) | L2 (mm) | L3 (mm) | L4 (mm) | F1 Initial (N) | F1 Final (N)
126653 | 03065-05 | 03065-05 | 4.95 | 3.0 | 4 | 5 | 4.1 | 0.8 | 5.0 | 1.0 | 0.7 | 2.3 | 0.7 | 0.67 | 1.57
126661 | 03065-06 | 03065-06 | 5.95 | 4.0 | 5 | 6 | 5.1 | 1.0 | 6.0 | 1.0 | 0.7 | 2.3 | 0.7 | 0.90 | 1.57
126665 | 03065-08 | 03065-08 | 7.95 | 5.0 | 6 | 8 | 6.1 | 1.5 | 7.0 | 1.5 | 1.2 | 3.7 | 1.0 | 1.35 | 2.70
126667 | 03065-10 | 03065-10 | 9.95 | 6.5 | 8 | 10 | 8.1 | 1.8 | 9.0 | 2.0 | 1.2 | 4.2 | 1.5 | 1.35 | 2.70
126668 | 03065-12 | 03065-12 | 11.95 | 8.0 | 10 | 12 | 10.1 | 2.7 | 13.5 | 2.5 | 1.8 | 5.3 | 2.0 | 2.25 | 4.50
126670 | 03065-14 | 03065-14 | 13.95 | 10.0 | 12 | 14 | 12.1 | 3.5 | 16.0 | 2.5 | 1.8 | 5.5 | 2.0 | 3.37 | 5.62

Media

• Product image and drawing available (image filenames referenced on page).

Characteristics / Technical specifications

• Product type: Ball-type spring plungers, non-threaded (press fit)
• Body material: Stainless steel
• Ball material: Stainless steel (hardened)
• Spring material: Stainless steel
• Retention: O-ring to retain plunger in vertical/overhead applications
• O-ring material: Buna-N
• Measurement system: Metric
• Available part variants: 03065-05, 03065-06, 03065-08, 03065-10, 03065-12, 03065-14 (see table for dimensions and spring forces)
