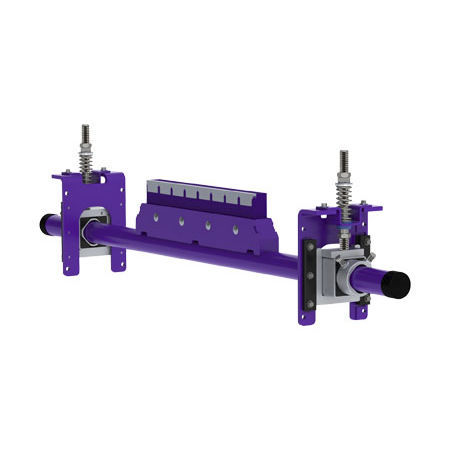

Steel secondary conveyor belt cleaner CBS™ series

polyurethanecarbide

The CBS Continuous Blade Secondary Belt Cleaner is designed with an unsegmented blade for excellent cleaning efficiency and low maintenance. The heavy-duty blade features a steel backbone holding a carbide leading edge which is encapsulated in our proprietary polyurethane to provide a long-wearing solution for your belt. When paired with a spring or air tensioner, the blade maintains constant pressure on the belt for excellent cleaning efficiency. • Thin, hard edge of the metal blade delivers high cleaning efficiency and long wear life CEMA Class 4 • SST XD tensioner for self-adjusting tension with easy retensioning adjustments and extra heavy-duty construction • Optional SAT XD Air/Water Tensioner • Belt speeds up to 800 fpm (4 m/sec) • Belt widths 18" to 96" (450 to 2400 mm) INSTALLATION • Can be mounted 4" (100 mm) from the transition point where the belt leaves the head pulley or any location down the beltline • When the CBS is teamed with the MMP precleaner, the system provides maximum cleaning power for tough applications
